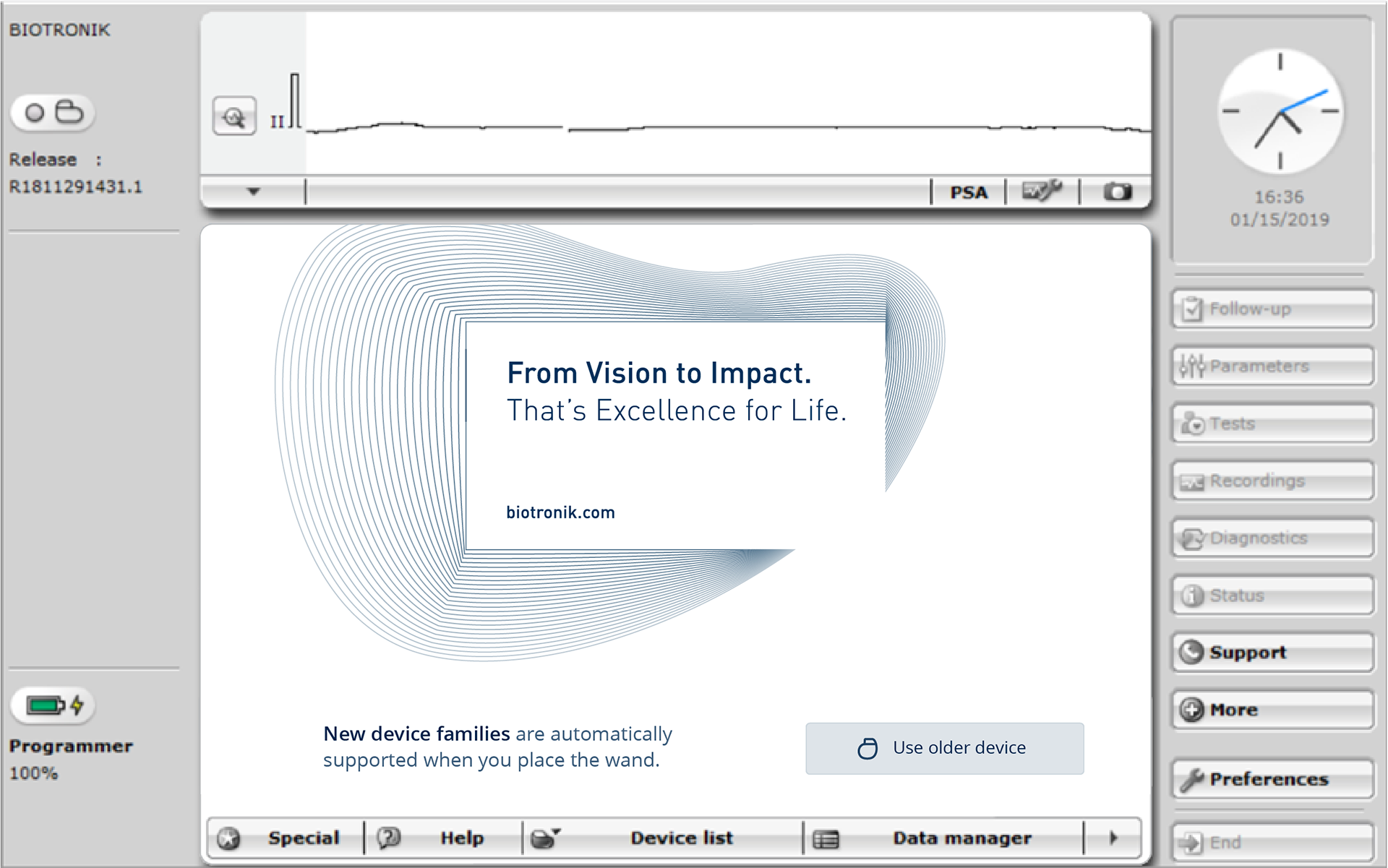

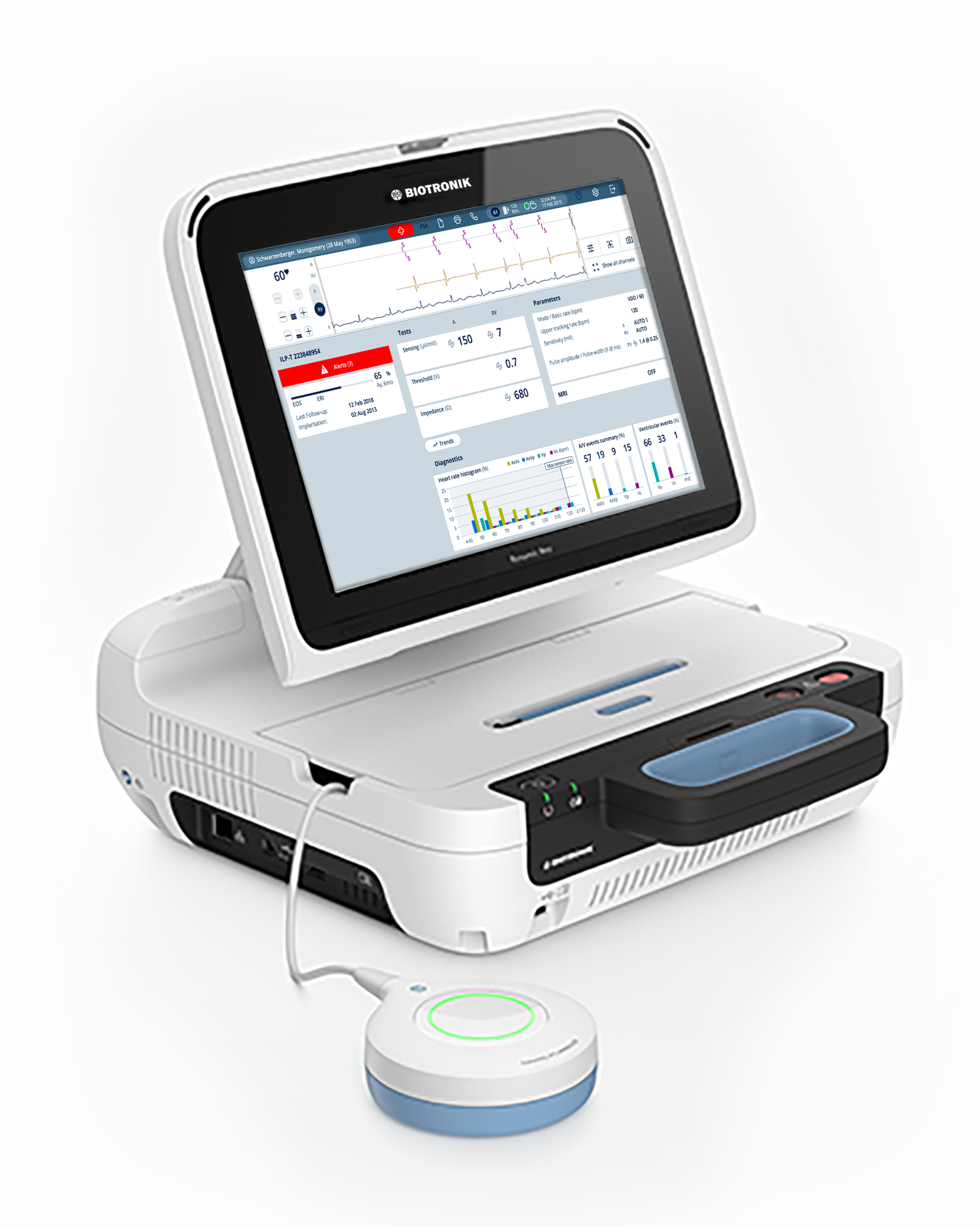

OLD PROGRAMMER NEW UPDATED PROGRAMMER

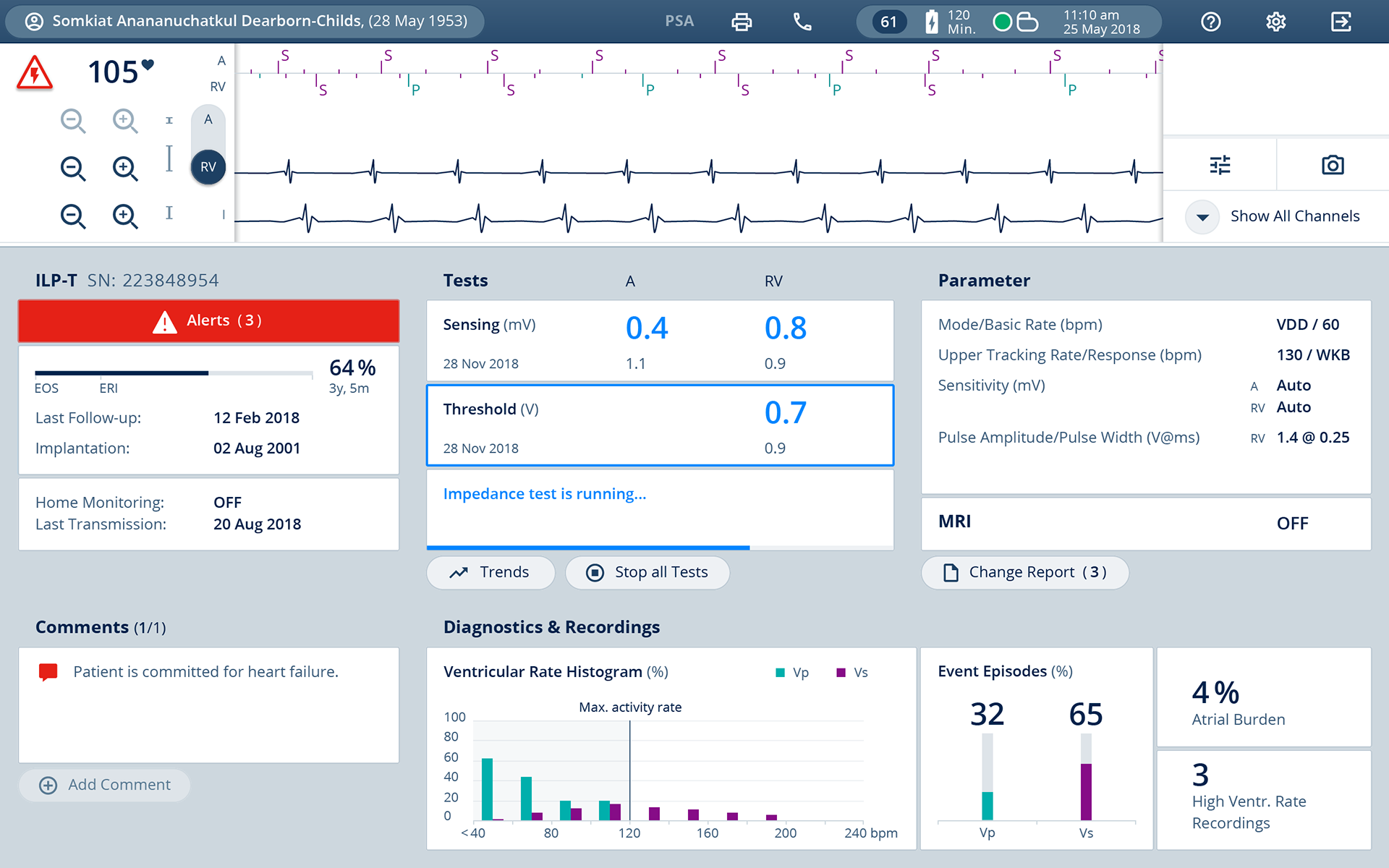

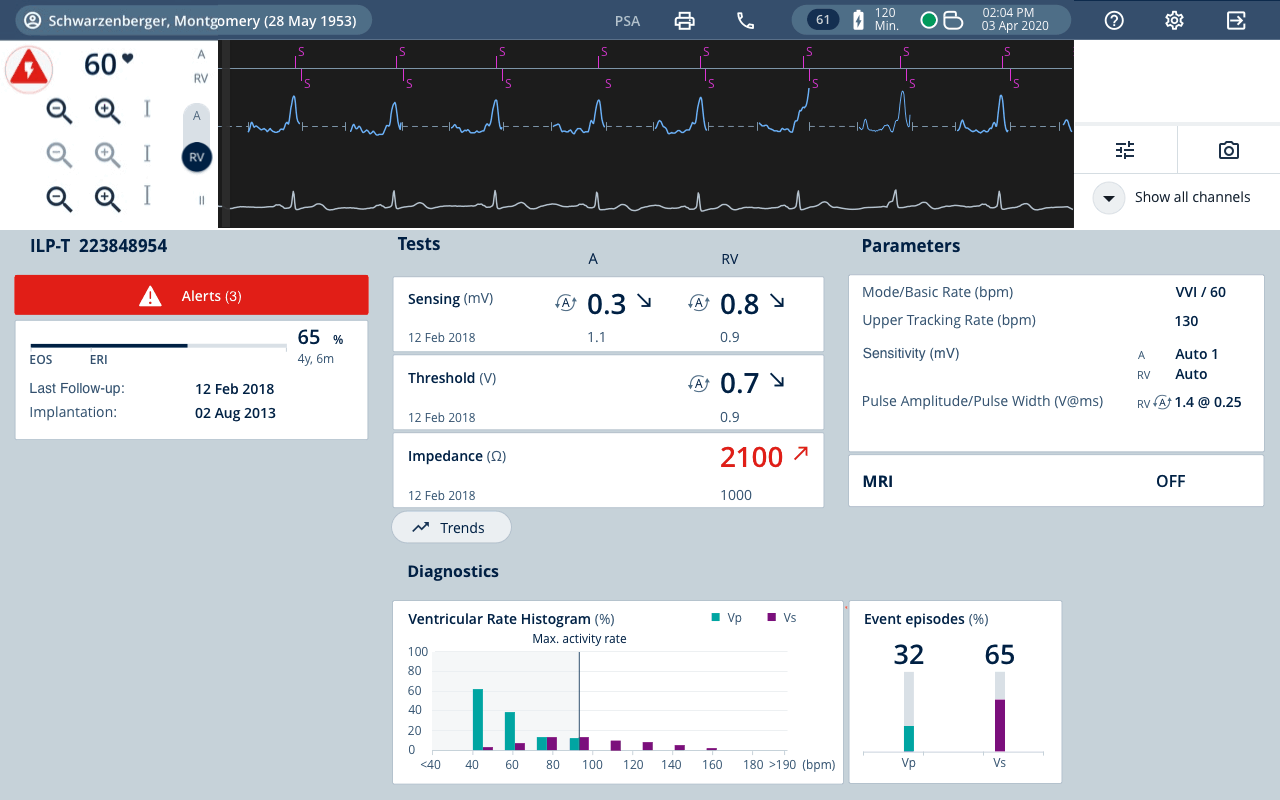

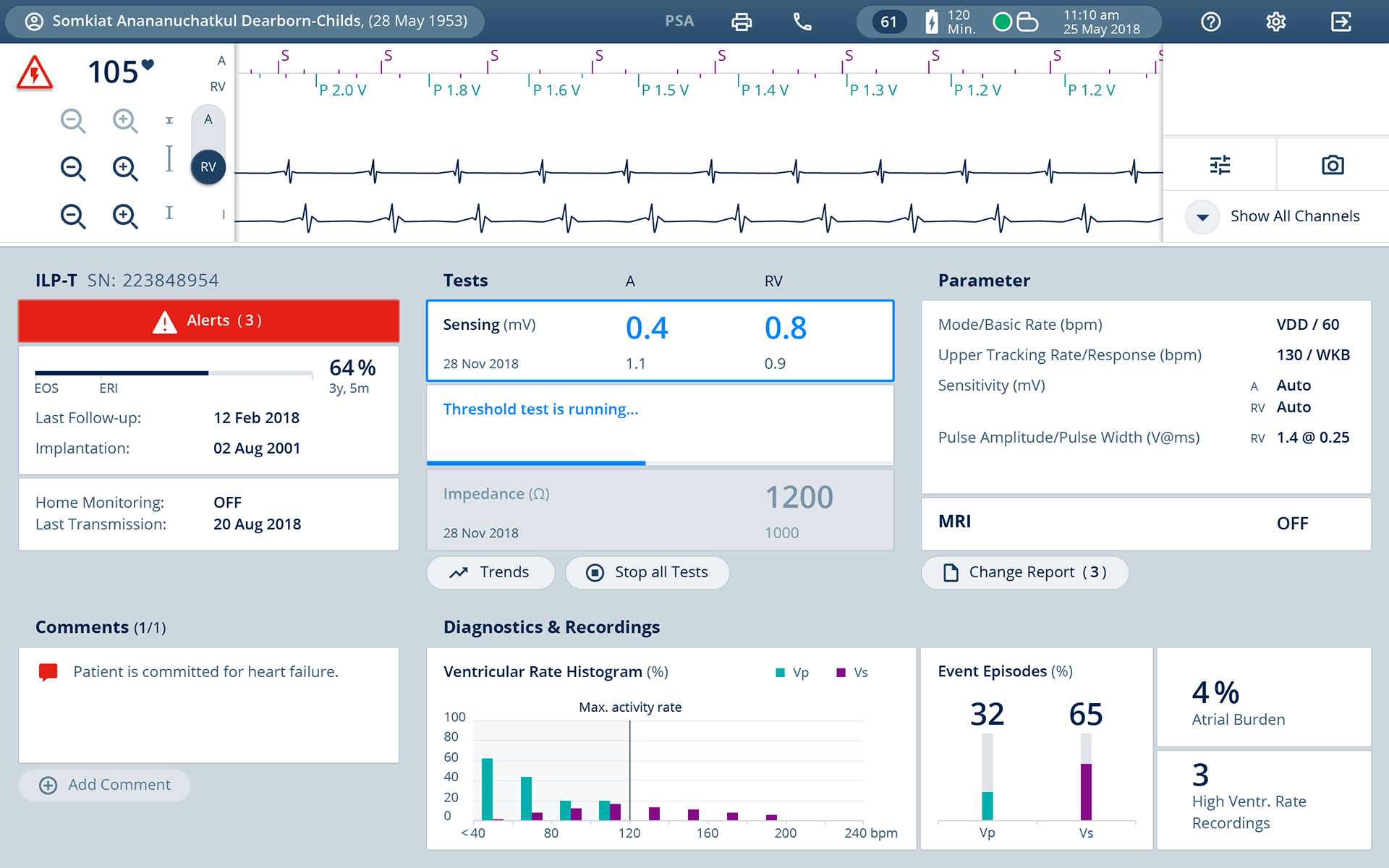

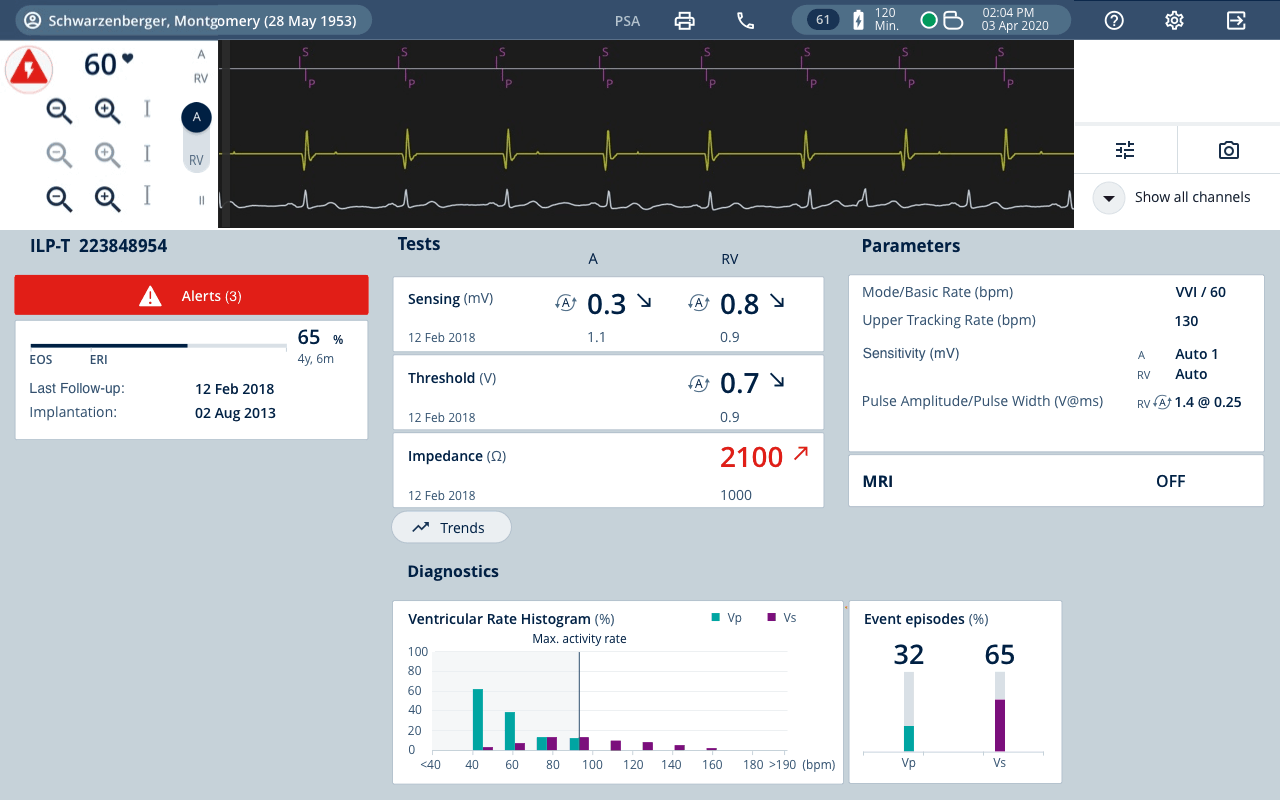

This is the new revamped and modernized dashboard. Created with the intent that every area that is clickable, looks like an active button, leading to additional pages and information.
Most of our time was spend on this screen. As it was identified as the most important information needed by our clinicians, and most used in follow-up sessions with patients.

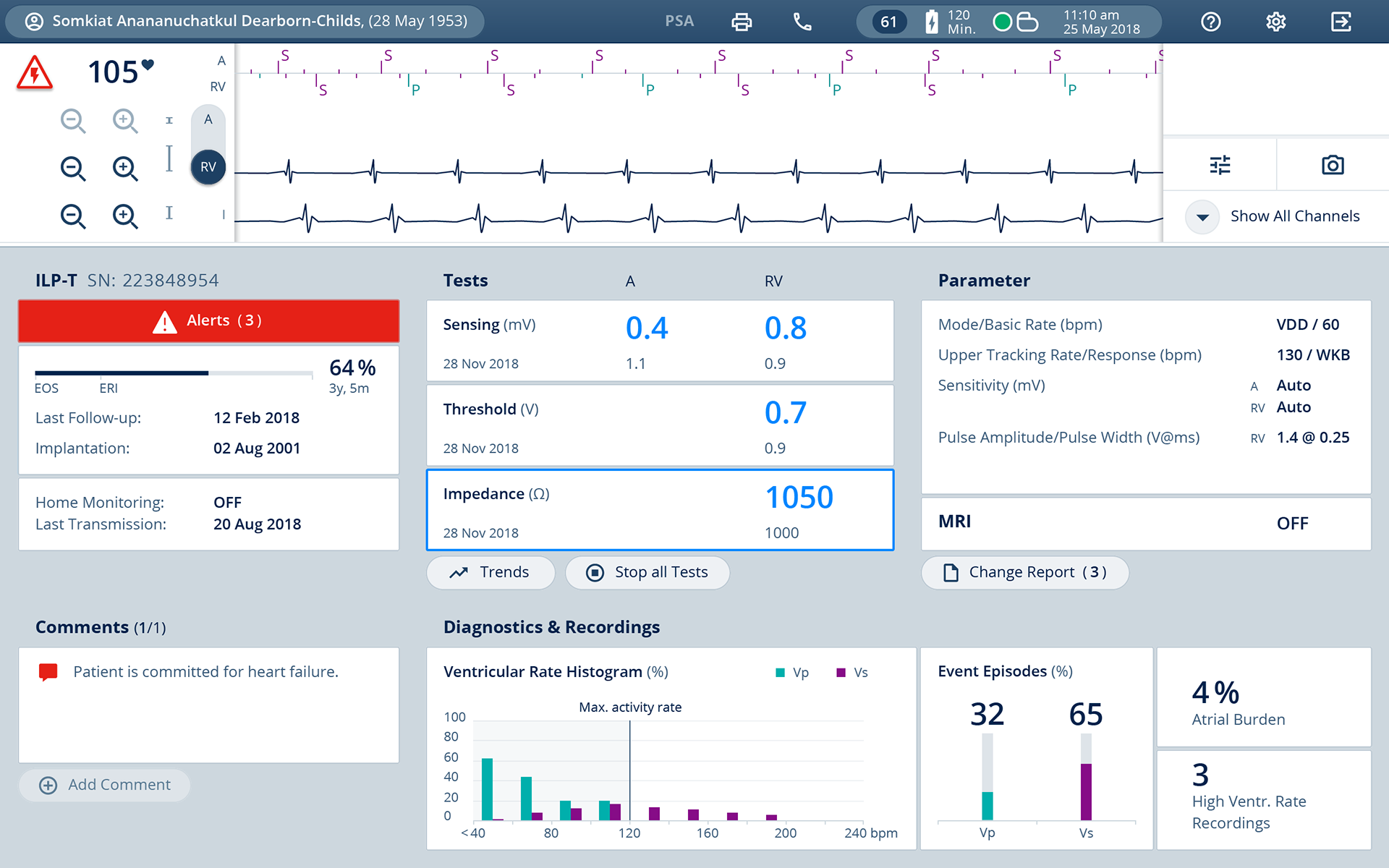

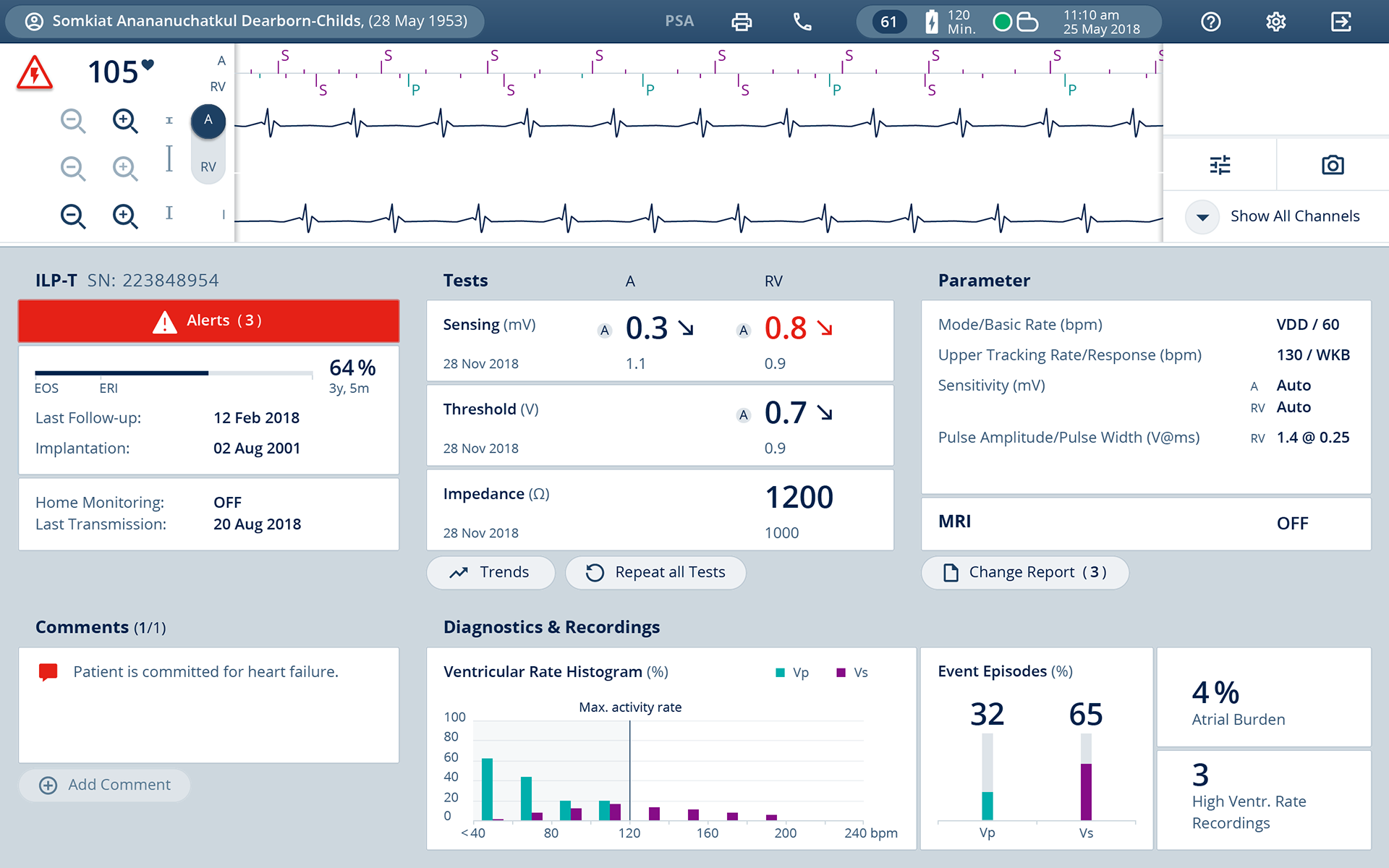

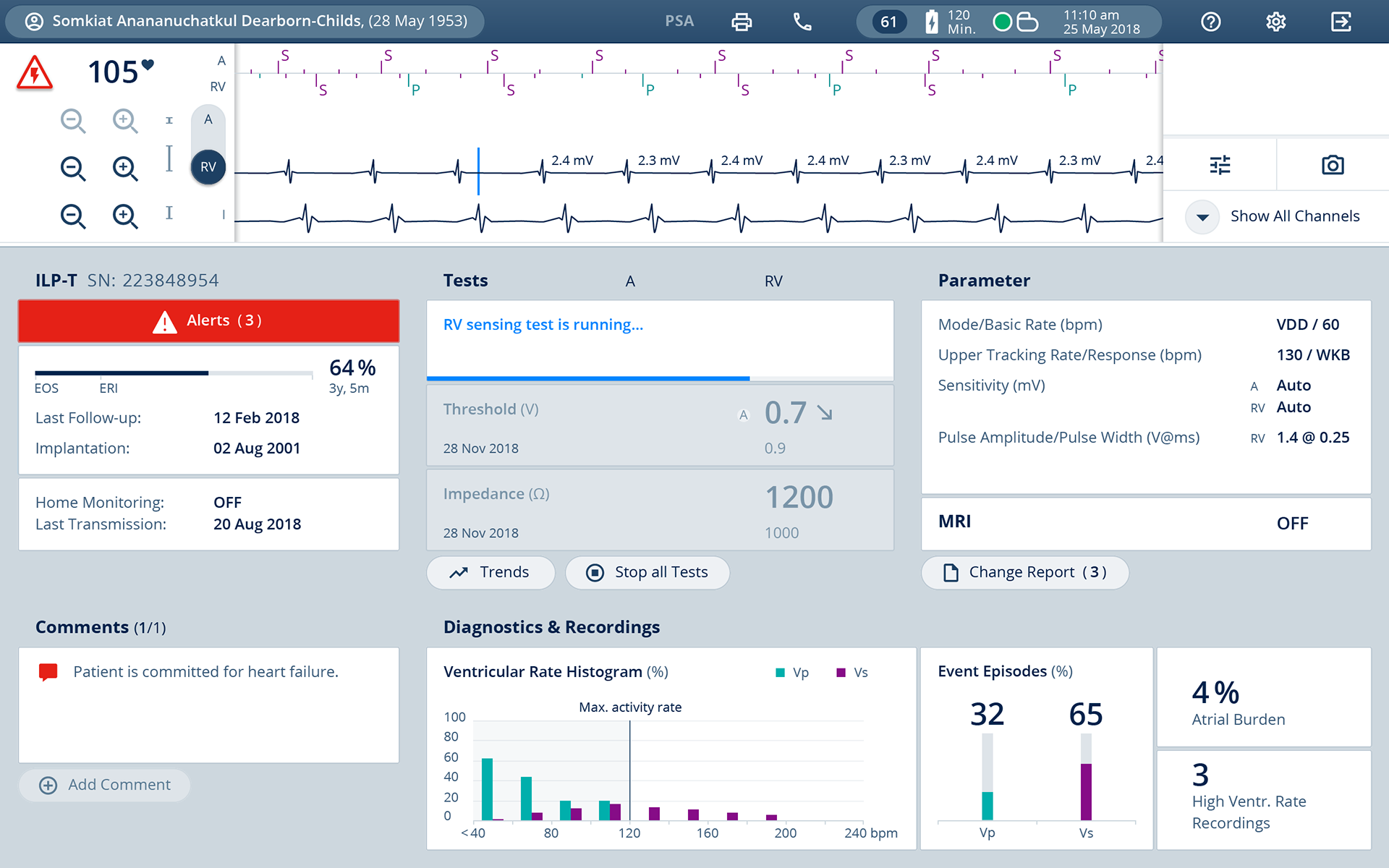

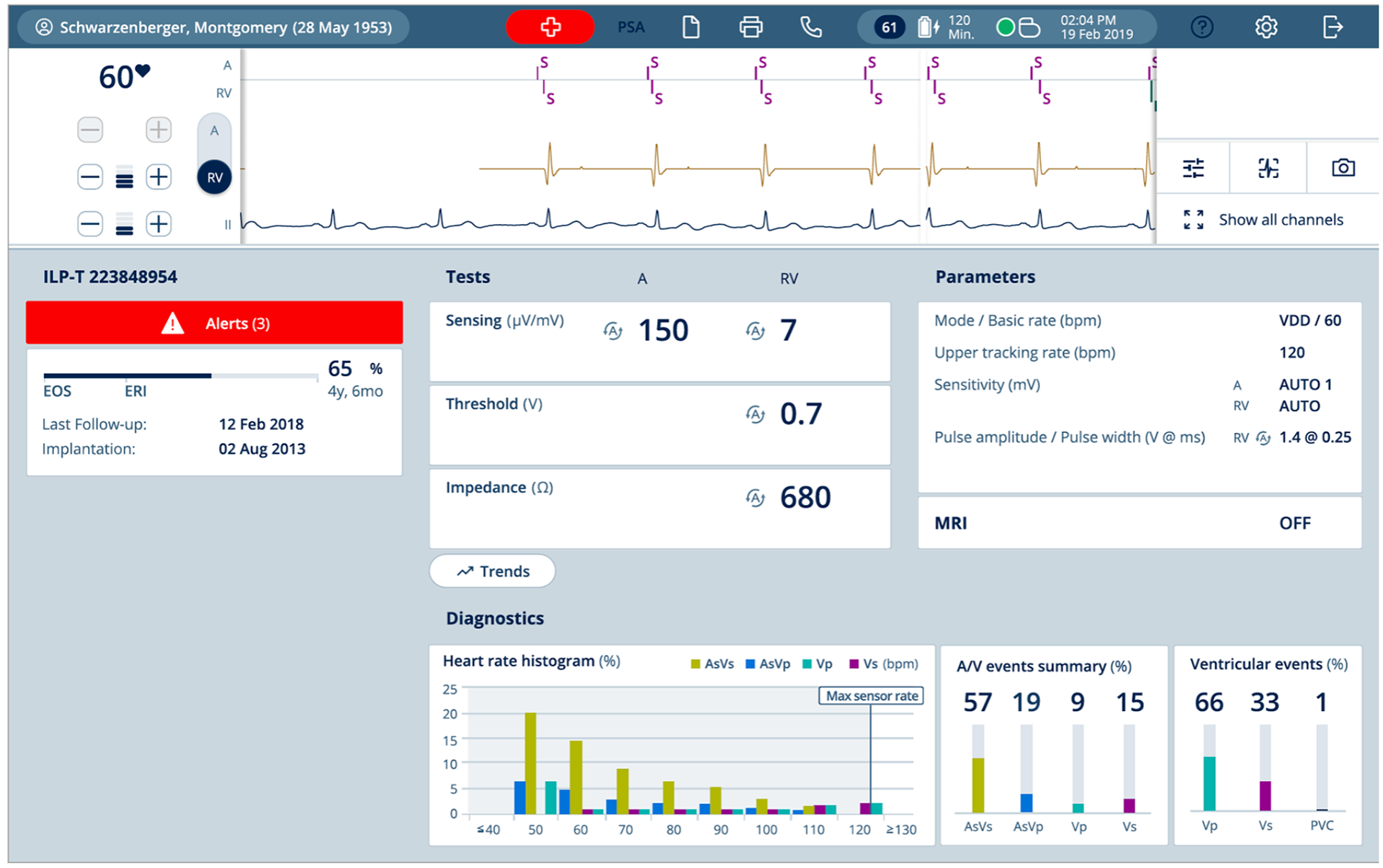

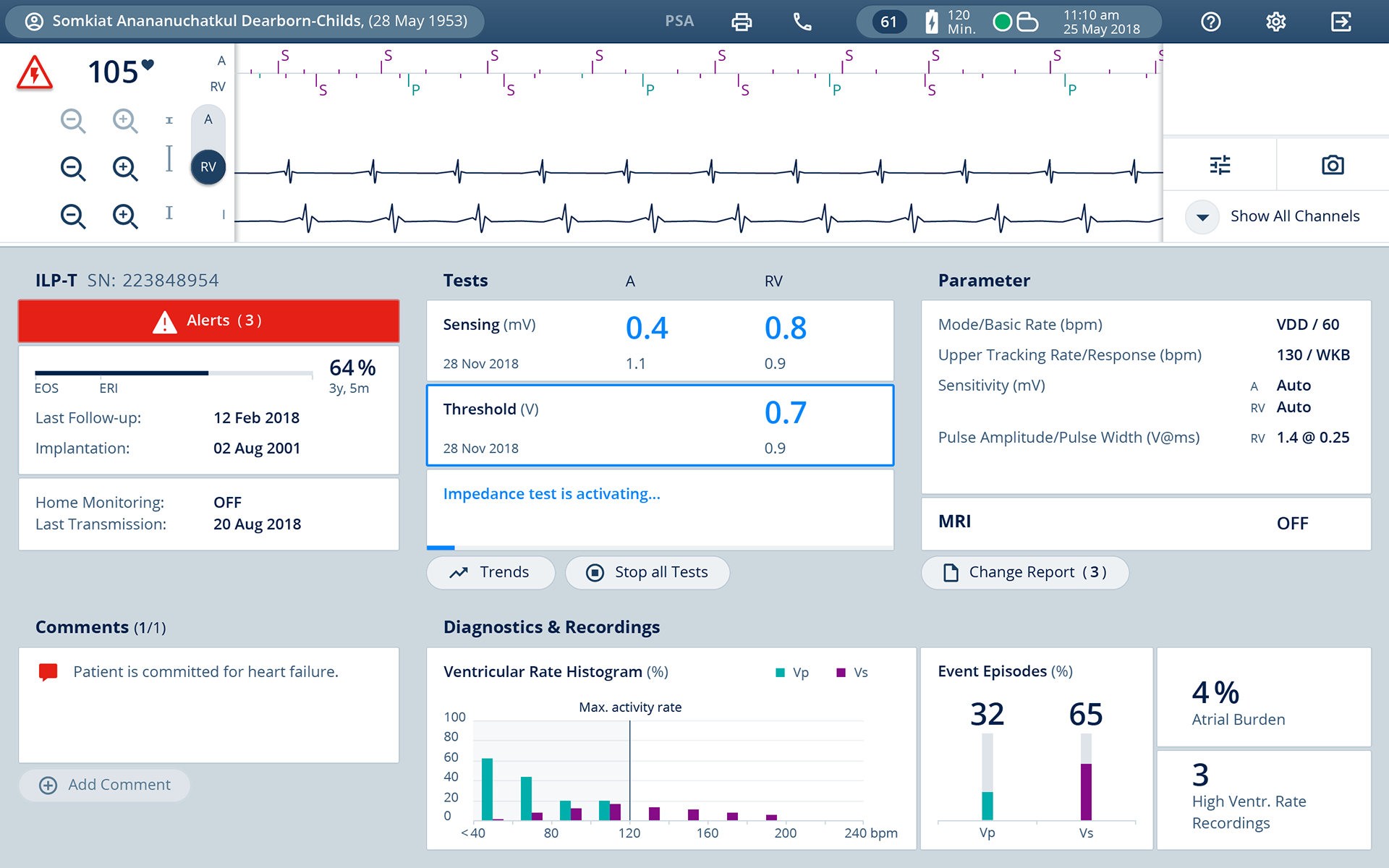

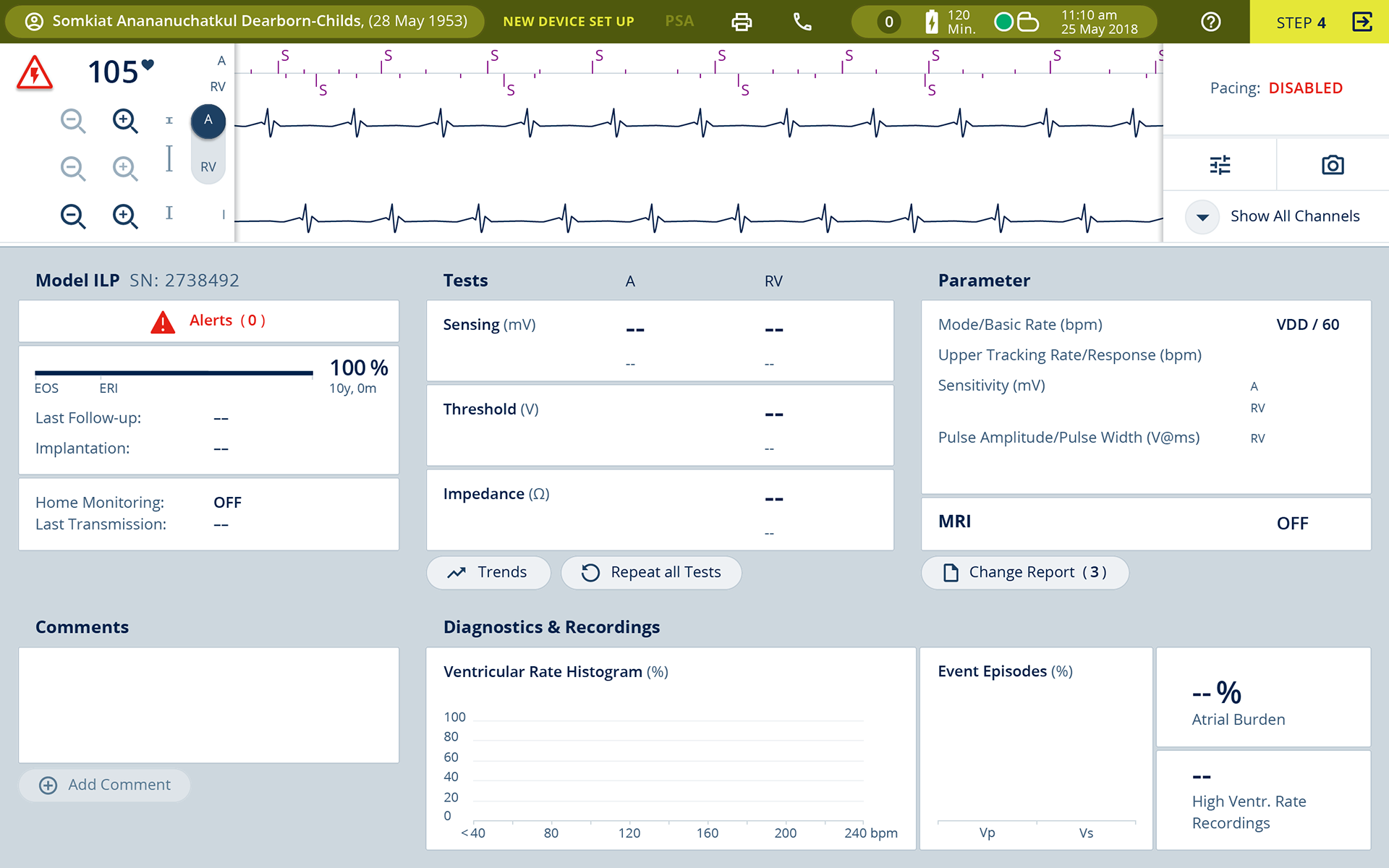

Dashboard

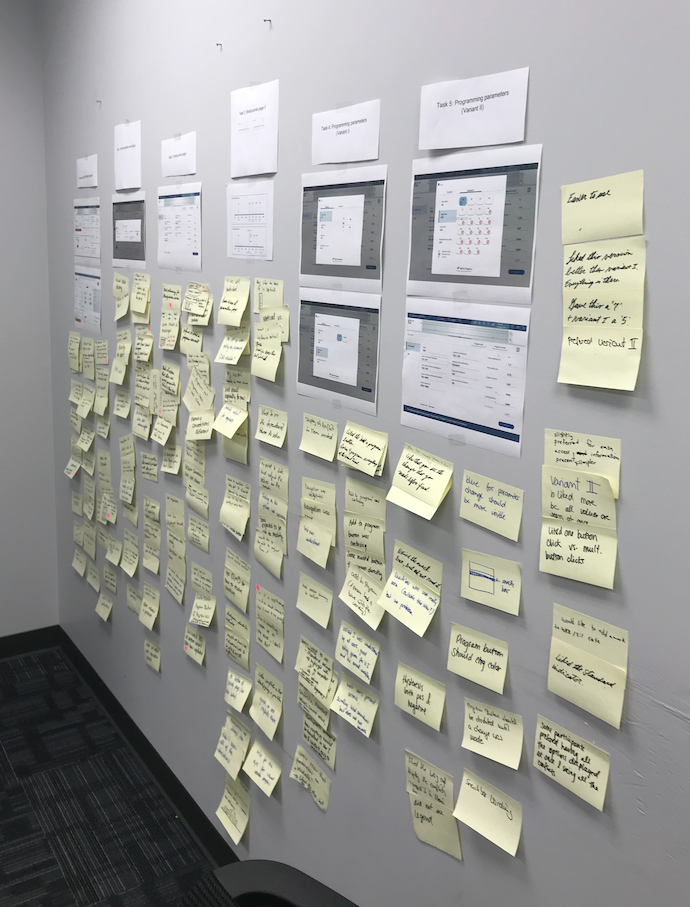

This team exercise was conducted to categorize all information by section and by priority of importance.

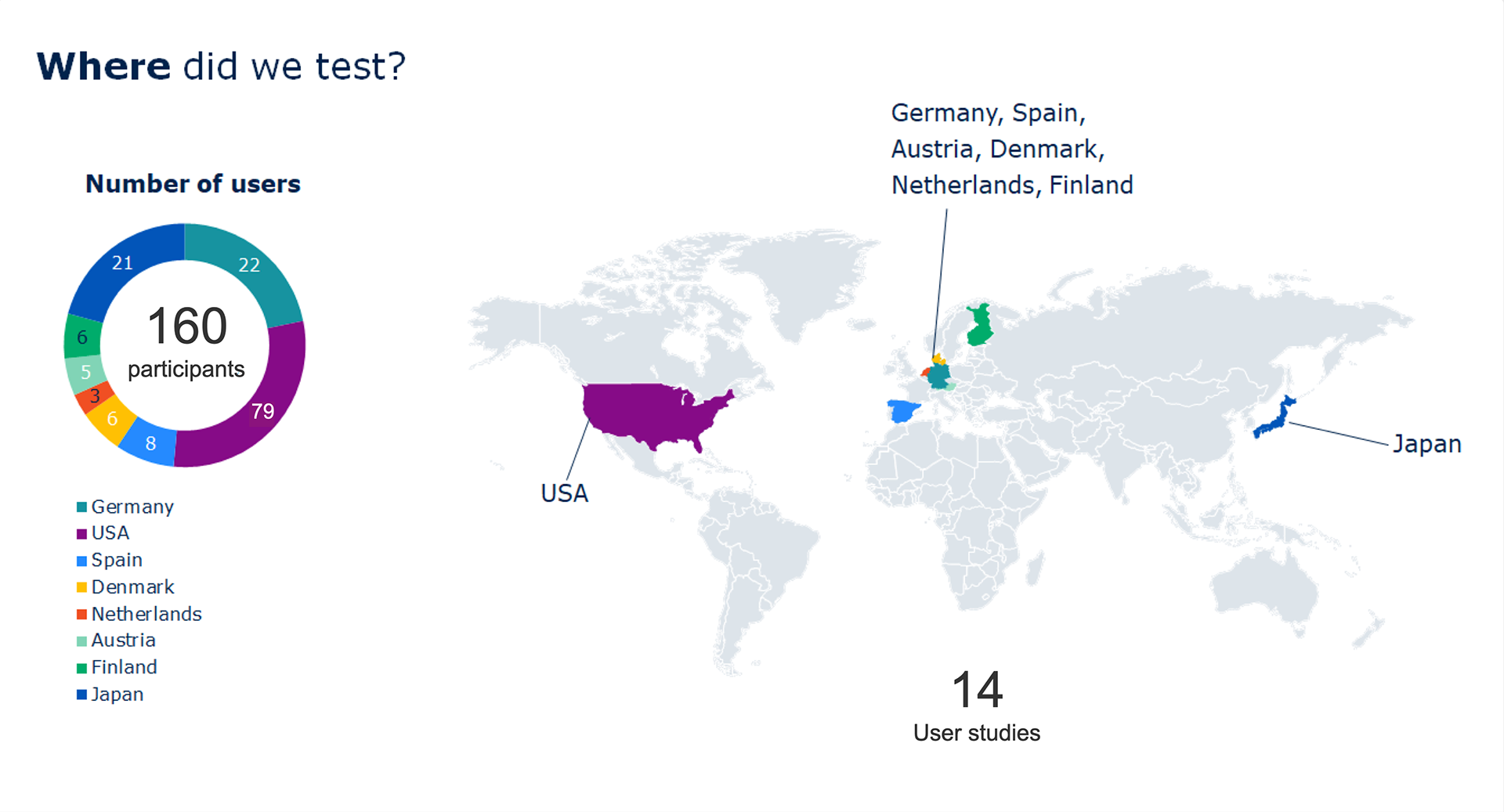

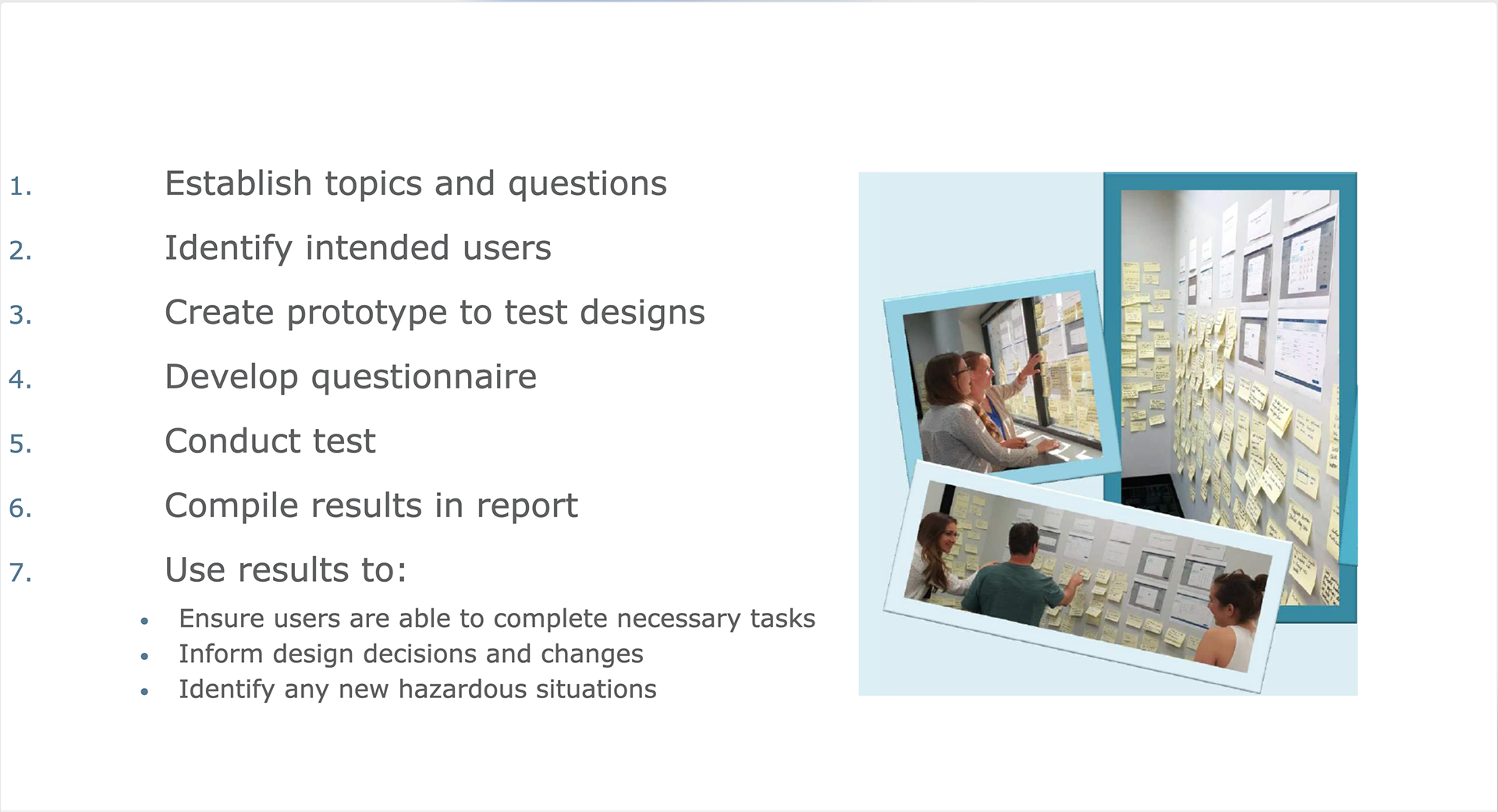

Usability Research & User Testing
These two prototypes were assembled to test the IEGM screen with different colors in dark mode. The intent was to show how the toggle can be switched from Atrial to Ventricle and vice versa. And whether it was acceptable and what they expected. Both had enough contrast in colors shown, and deemed acceptable by our users.
Diagnostics - timing, arrhythmia, setting

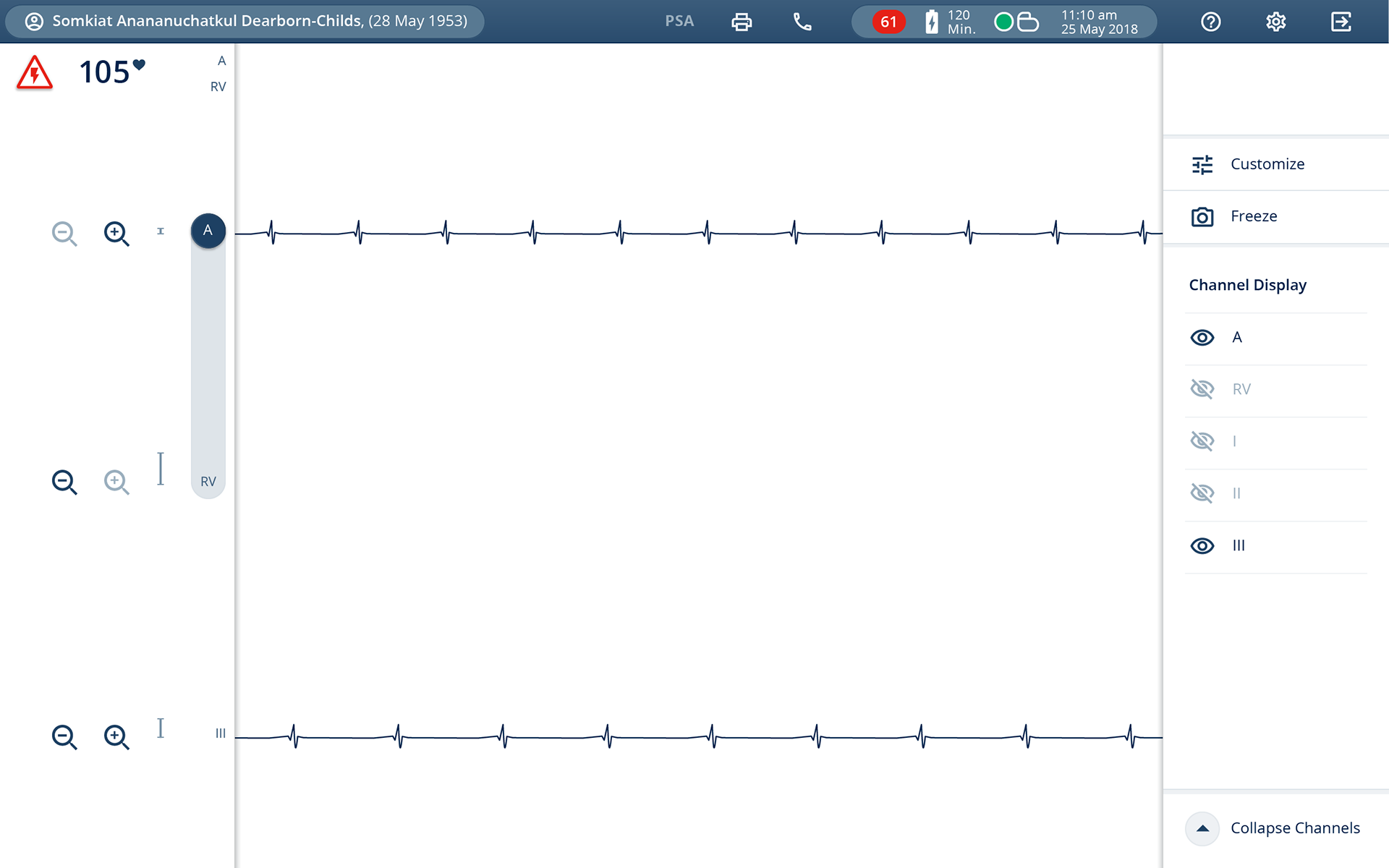

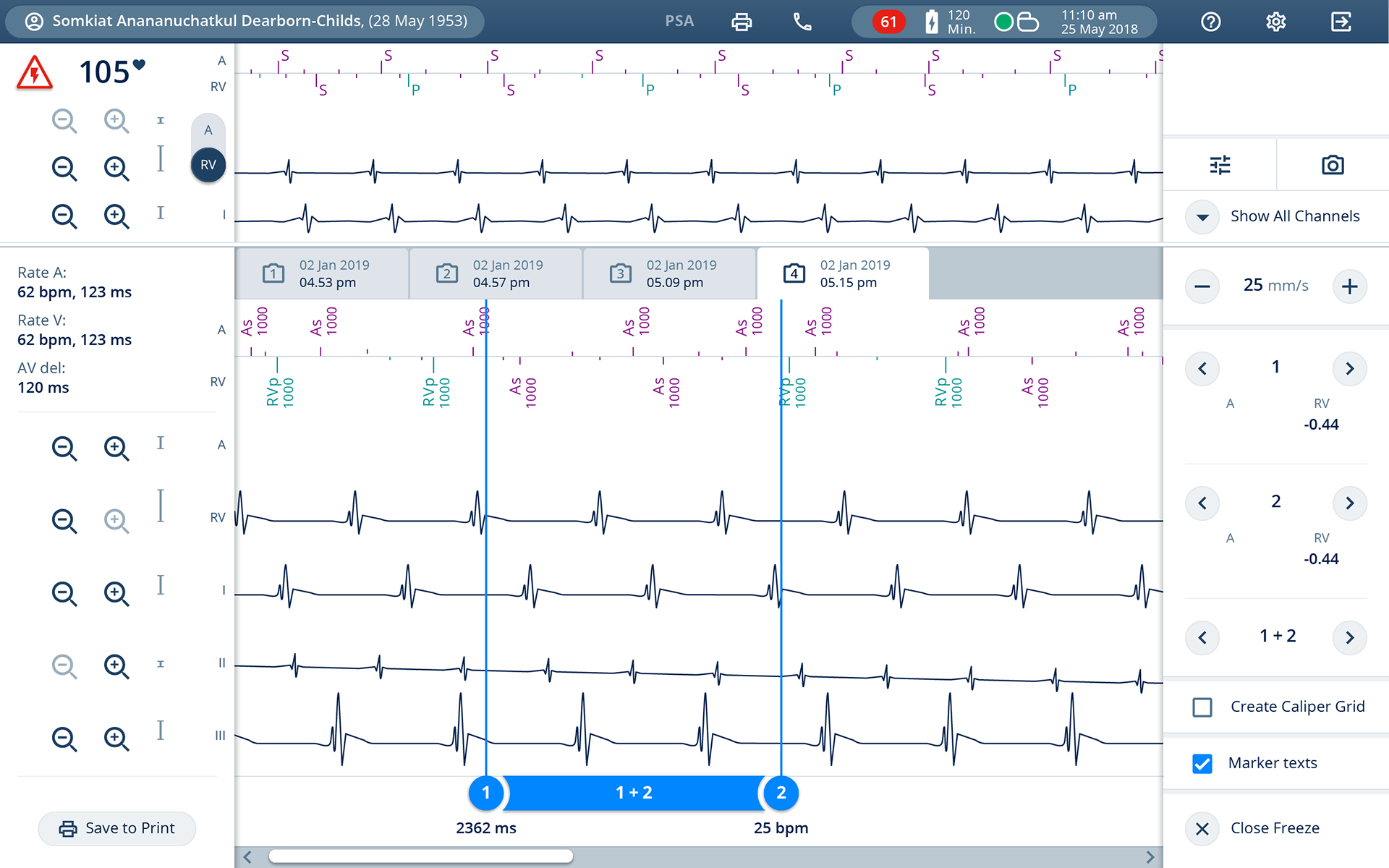

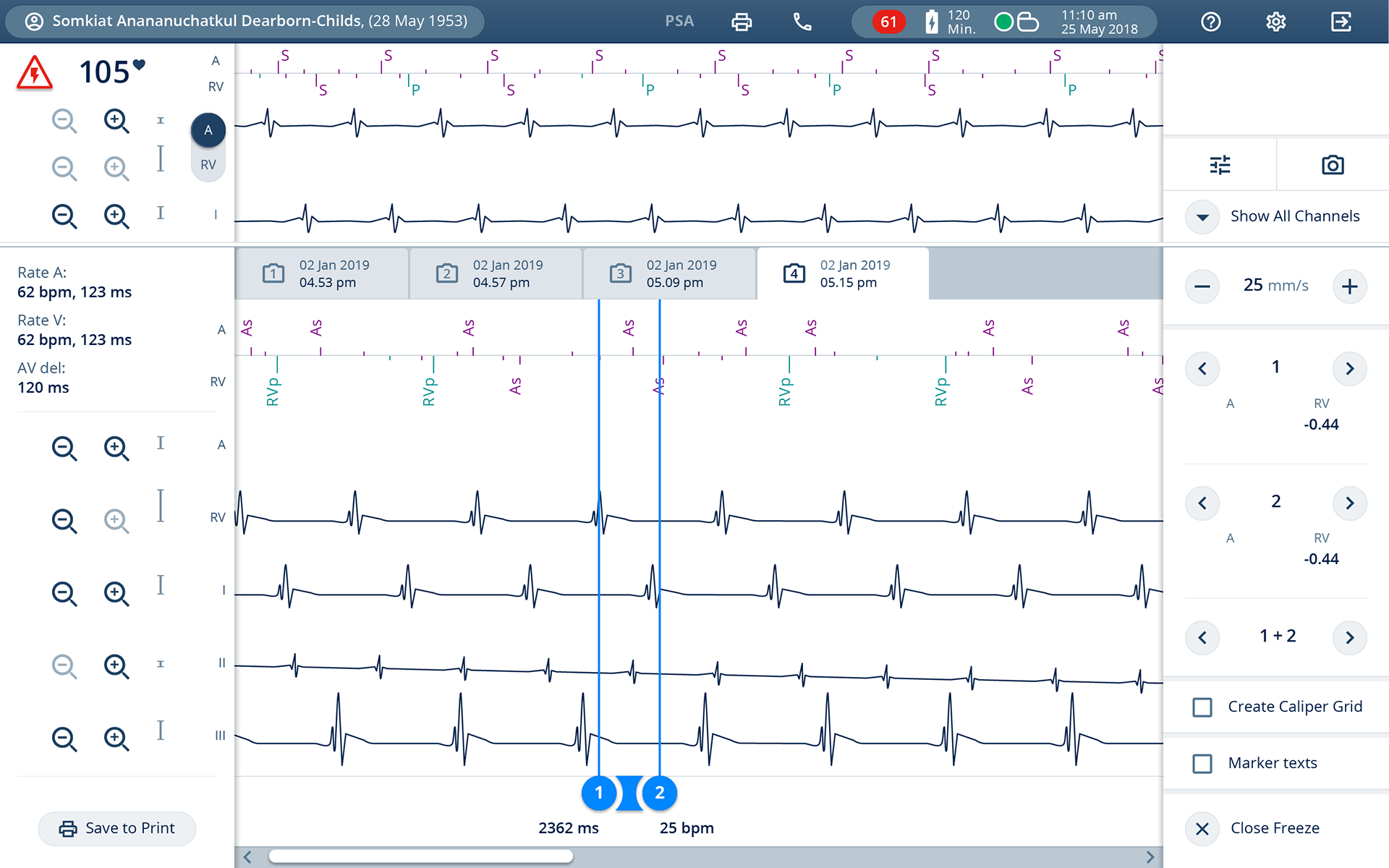

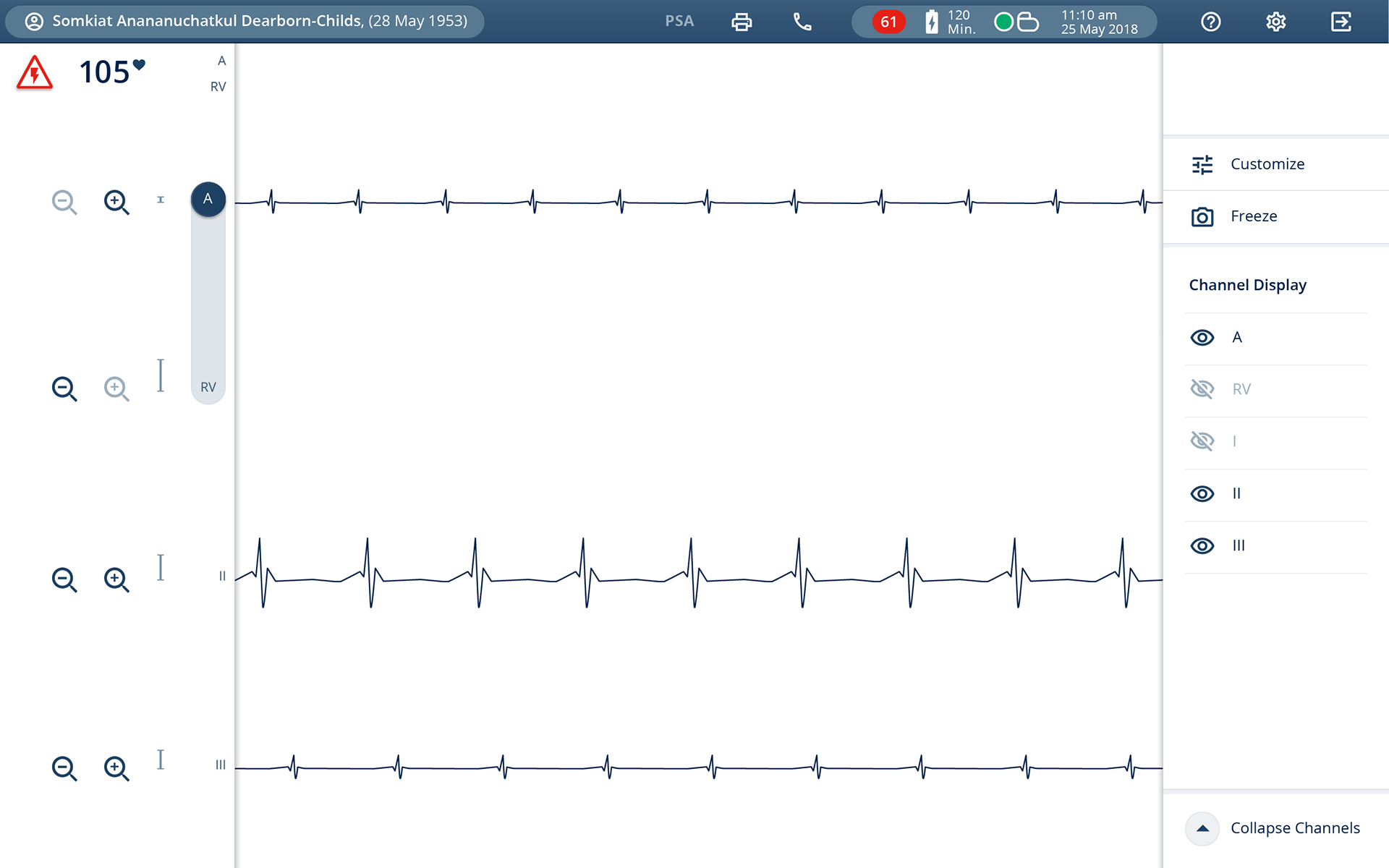

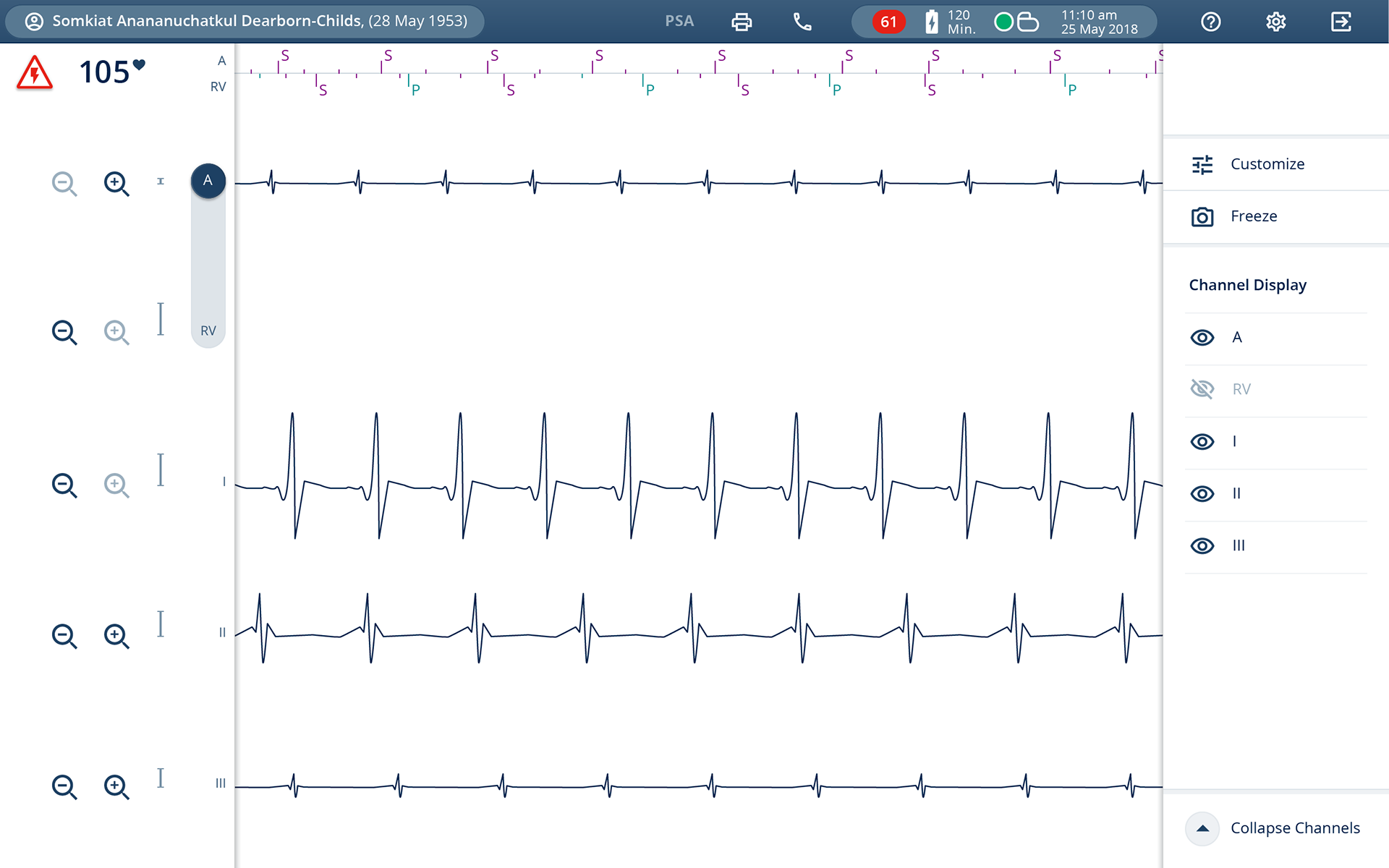

Overview Ventricle IEGM
Timing

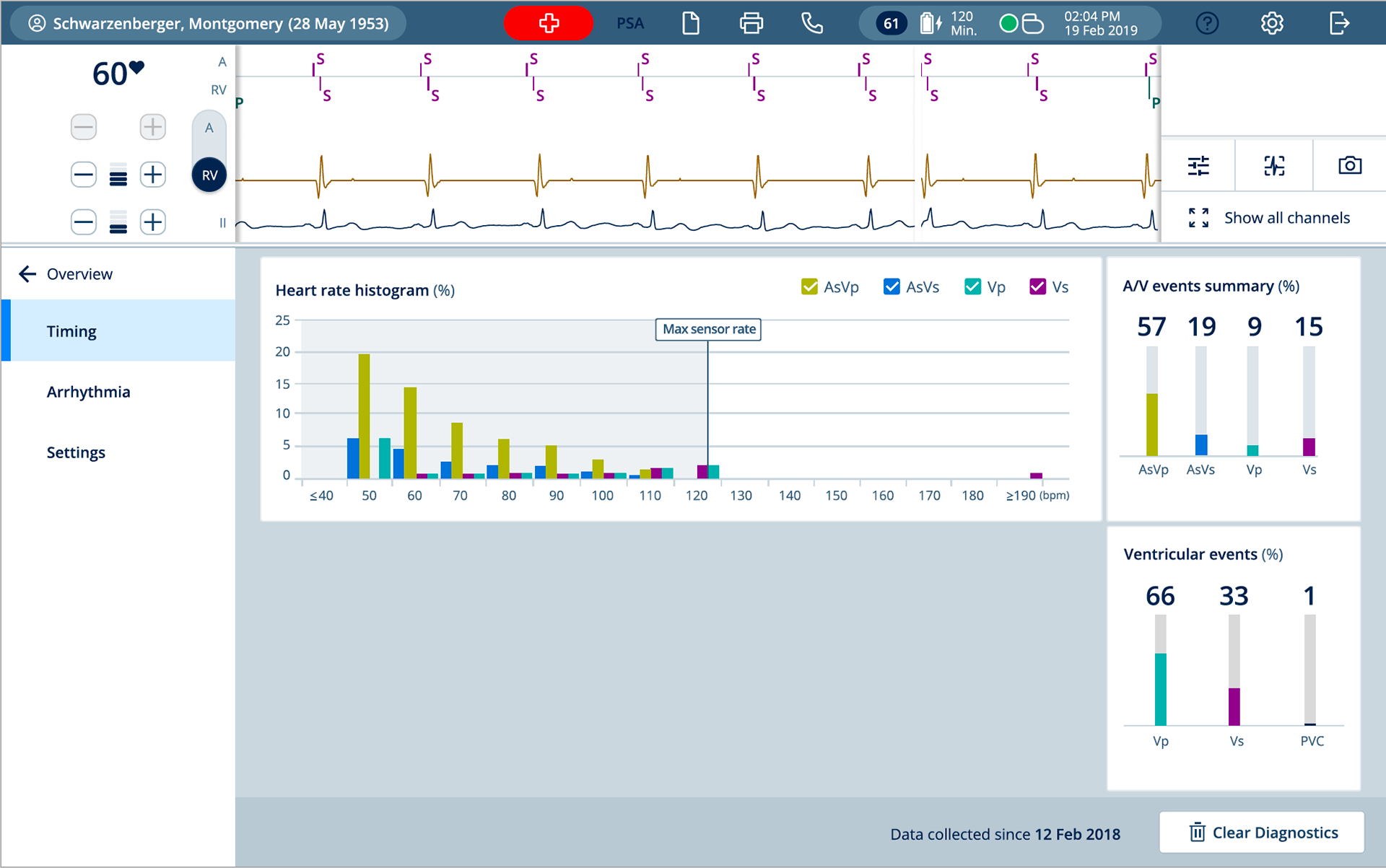

Timing with flag results

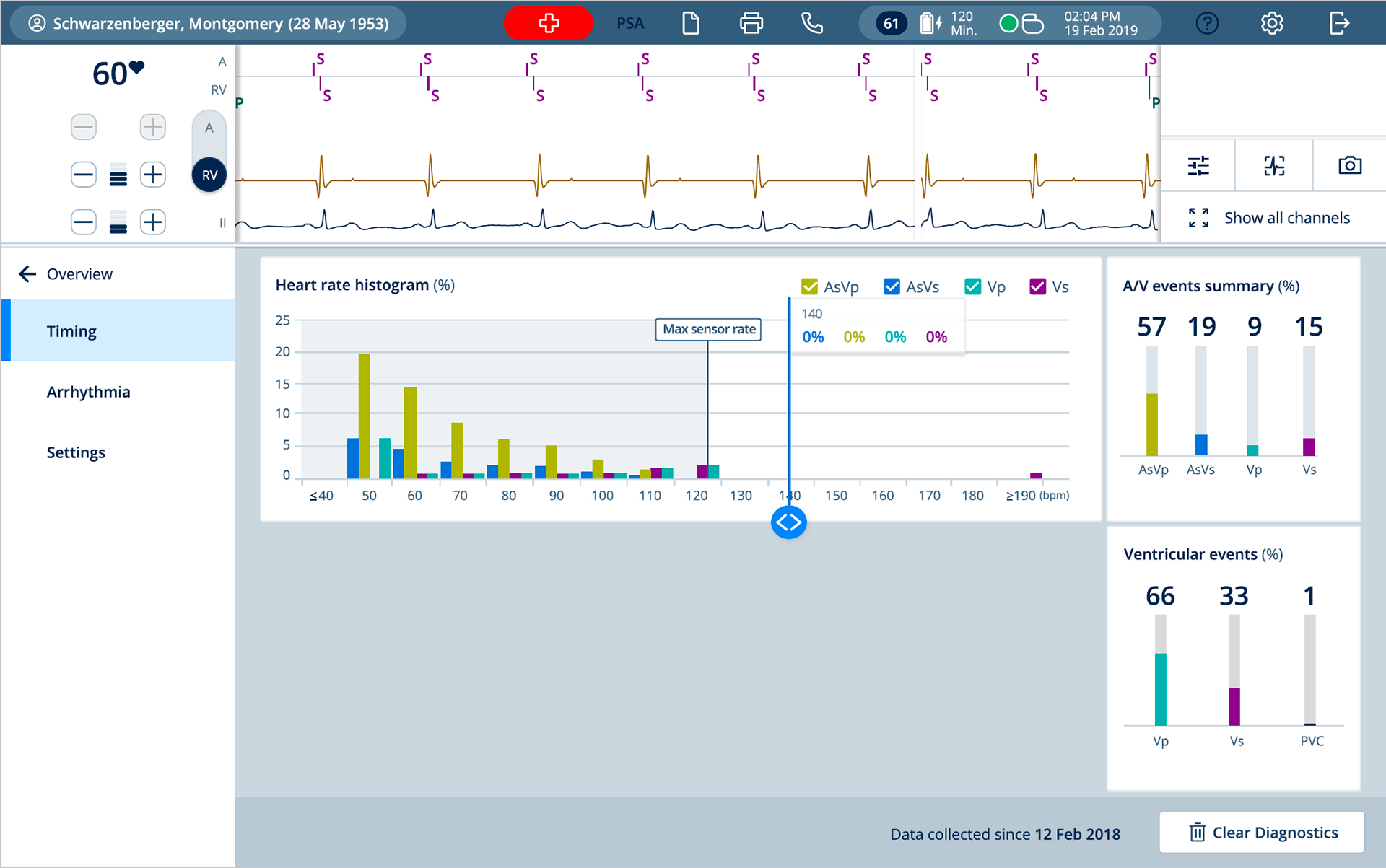

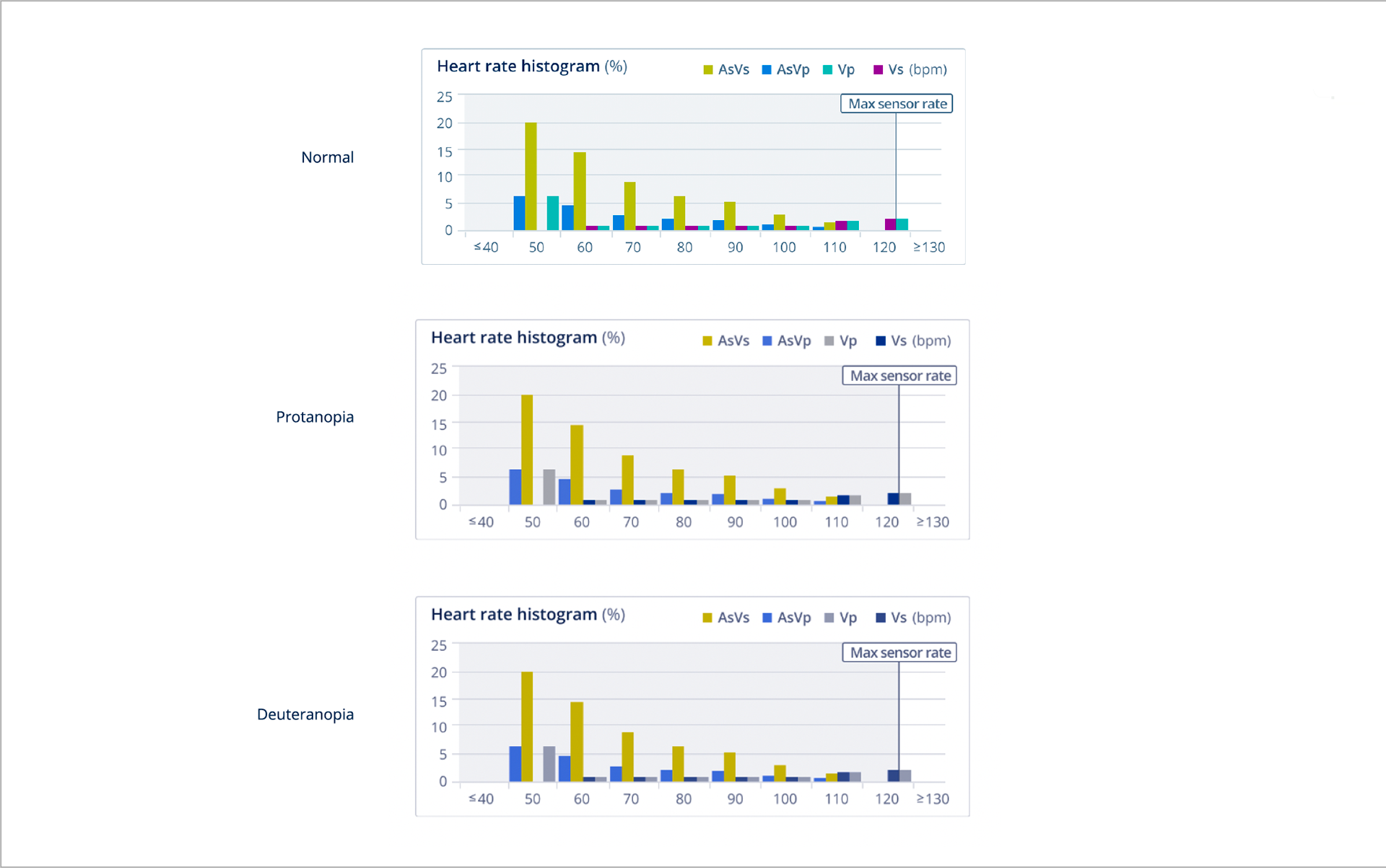

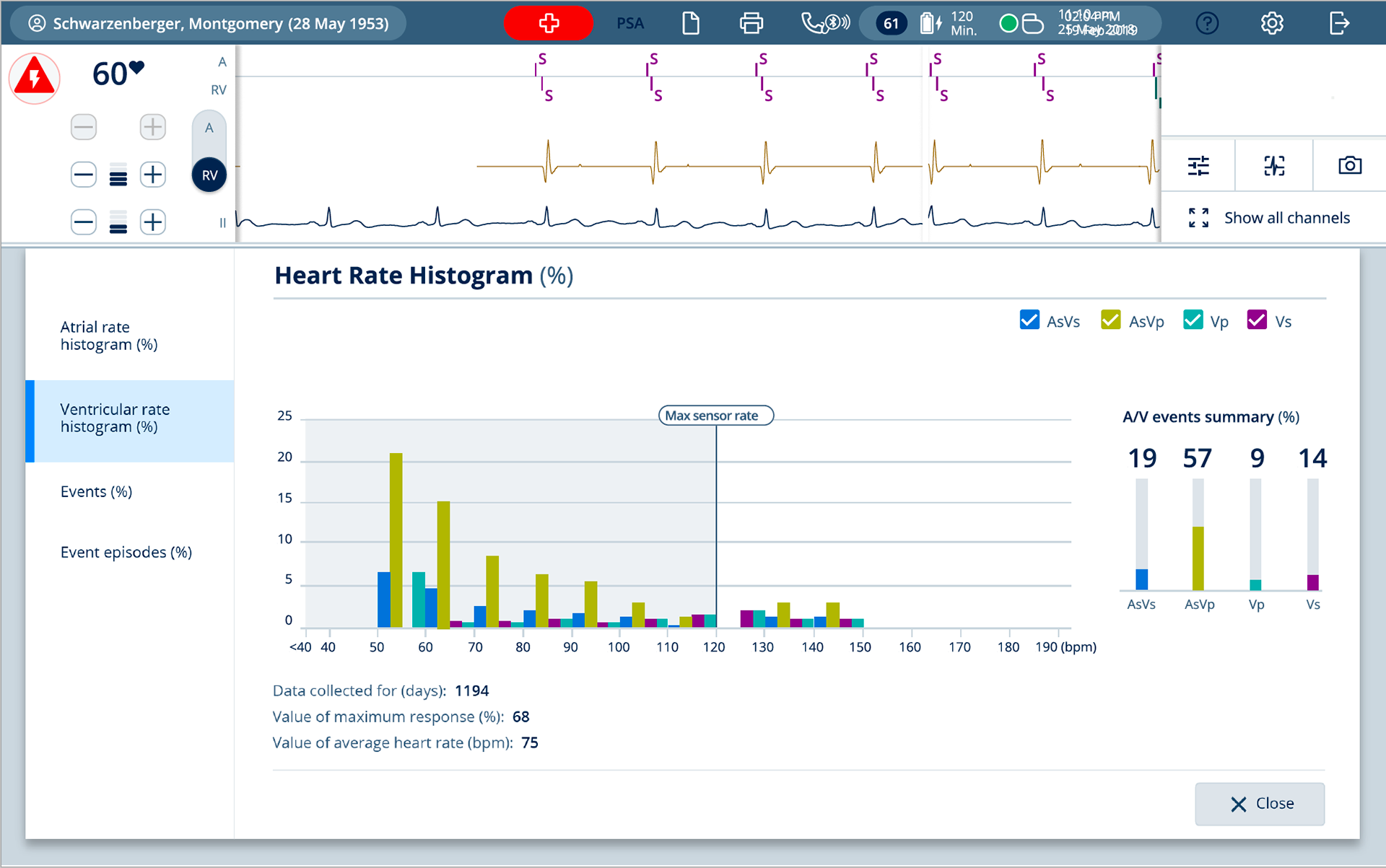

Ventricle rate histogram
accessibility test

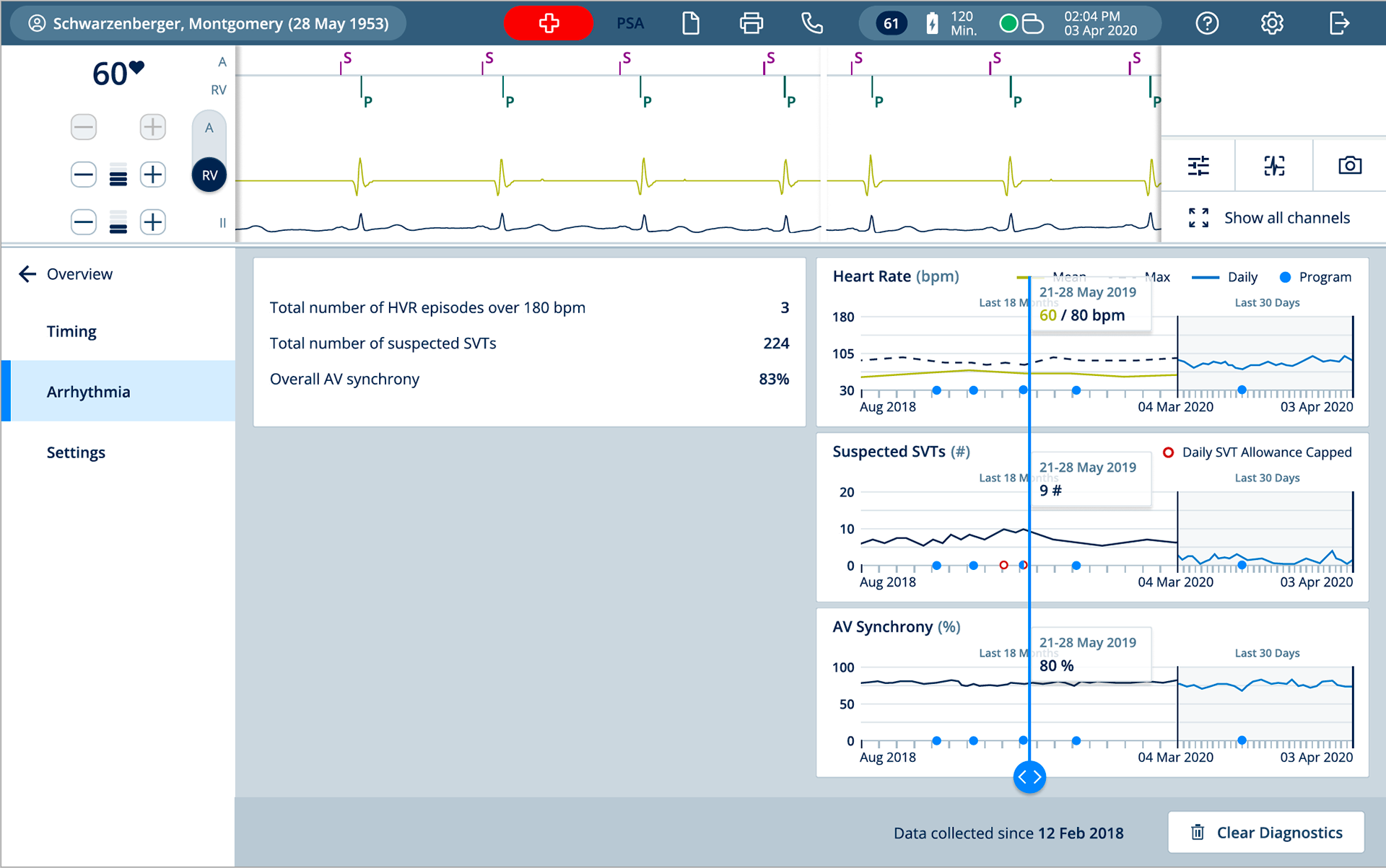

Arrhythmia

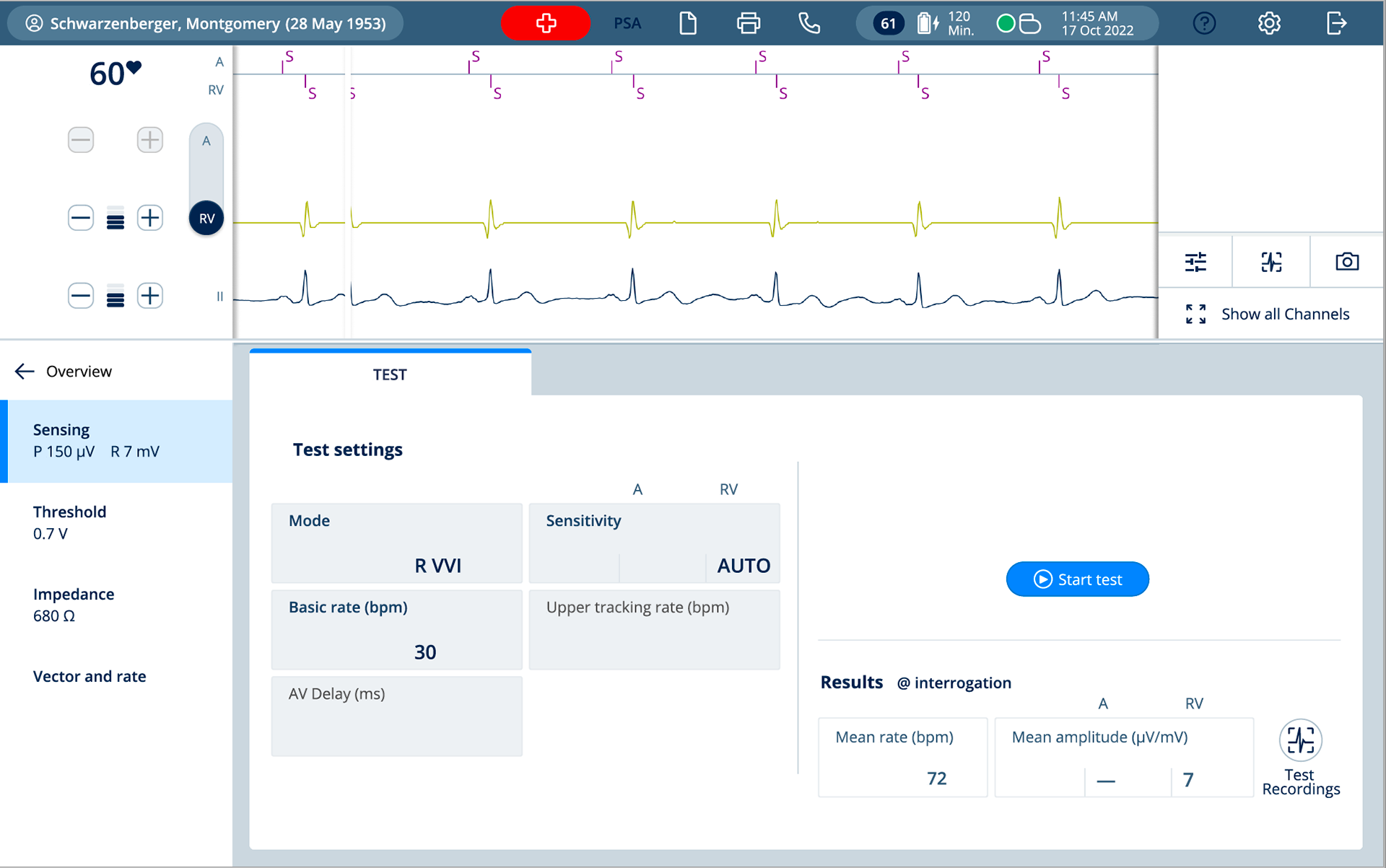

Sensing test ventricle IEGM flow
Original overview values

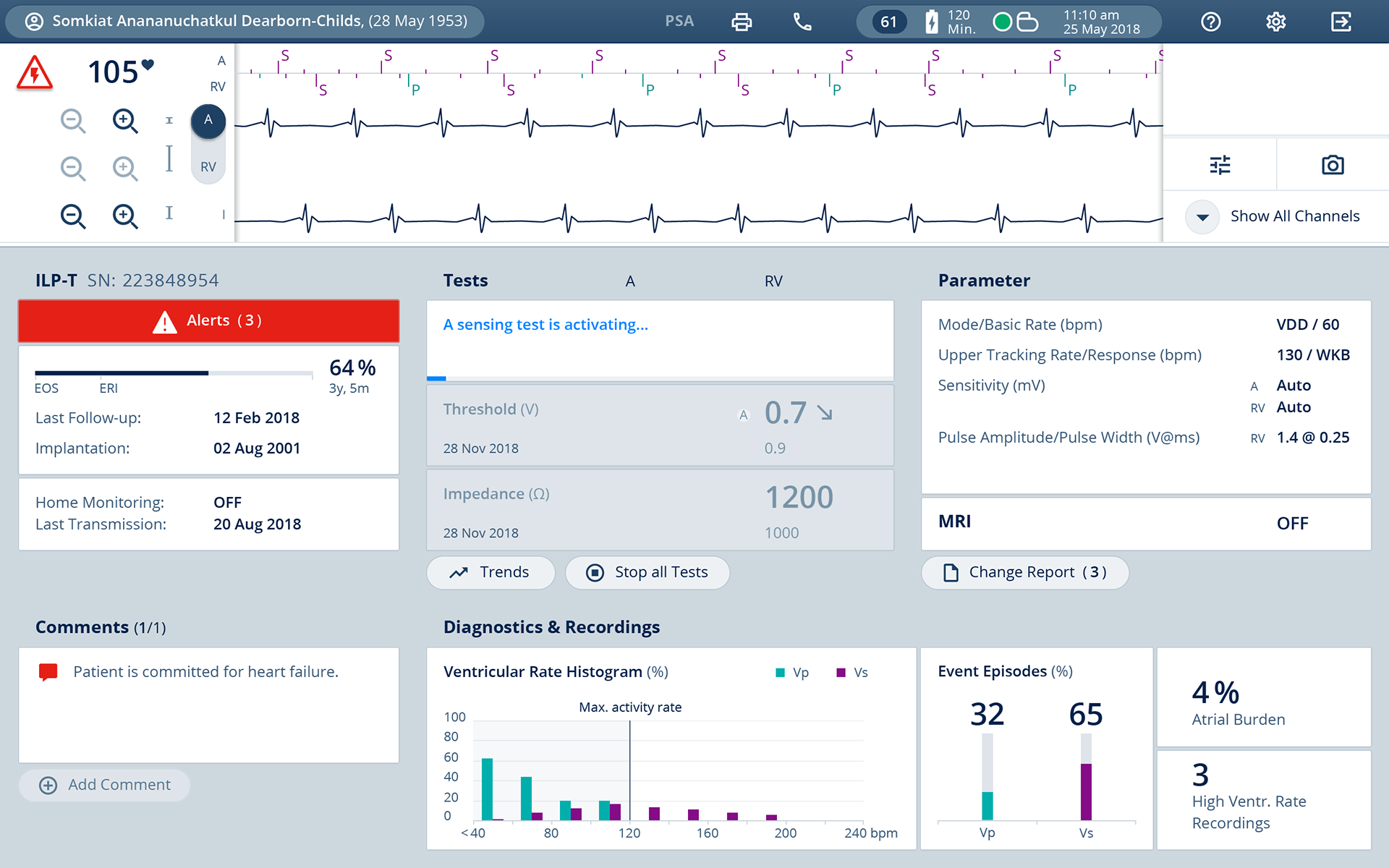

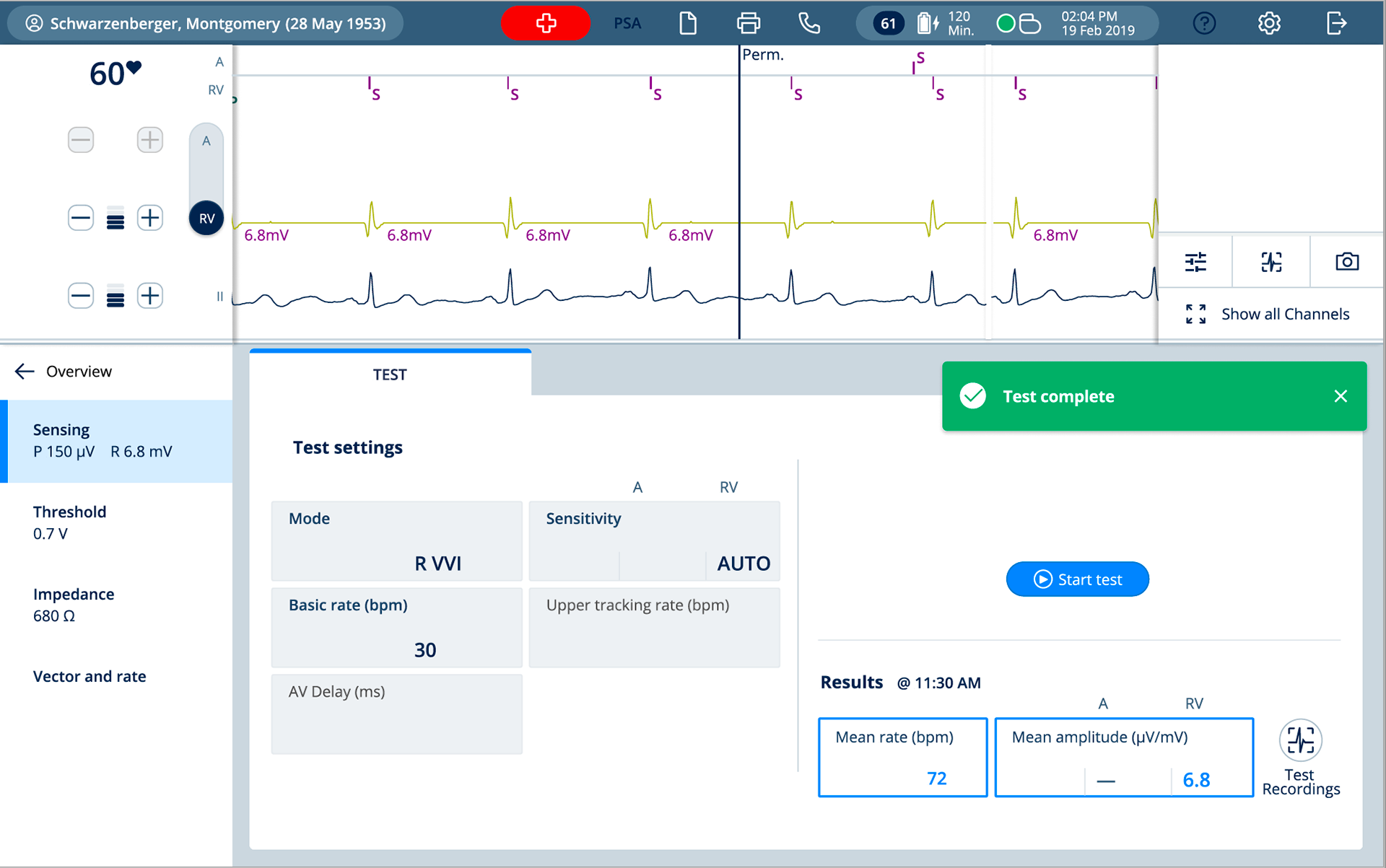

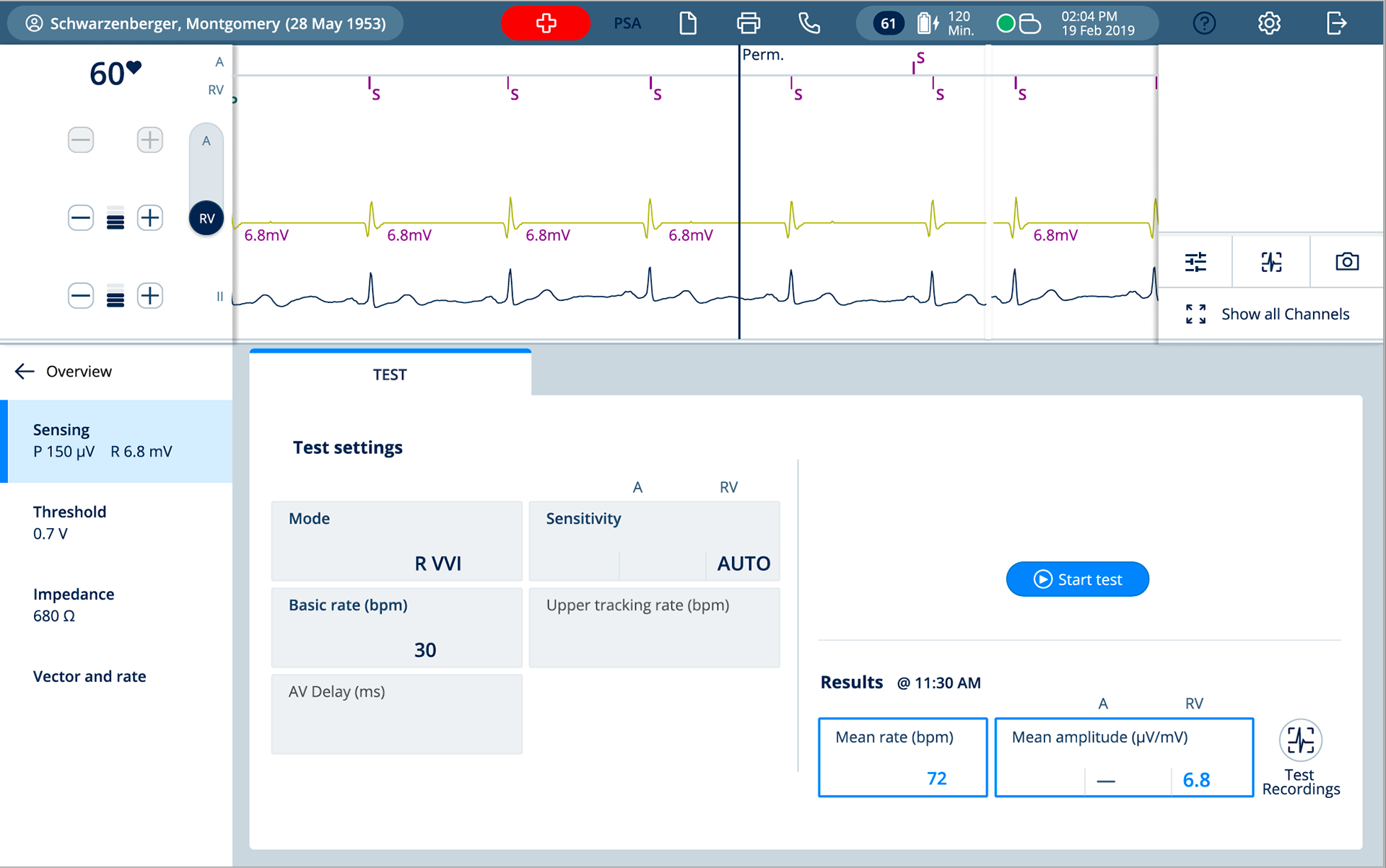

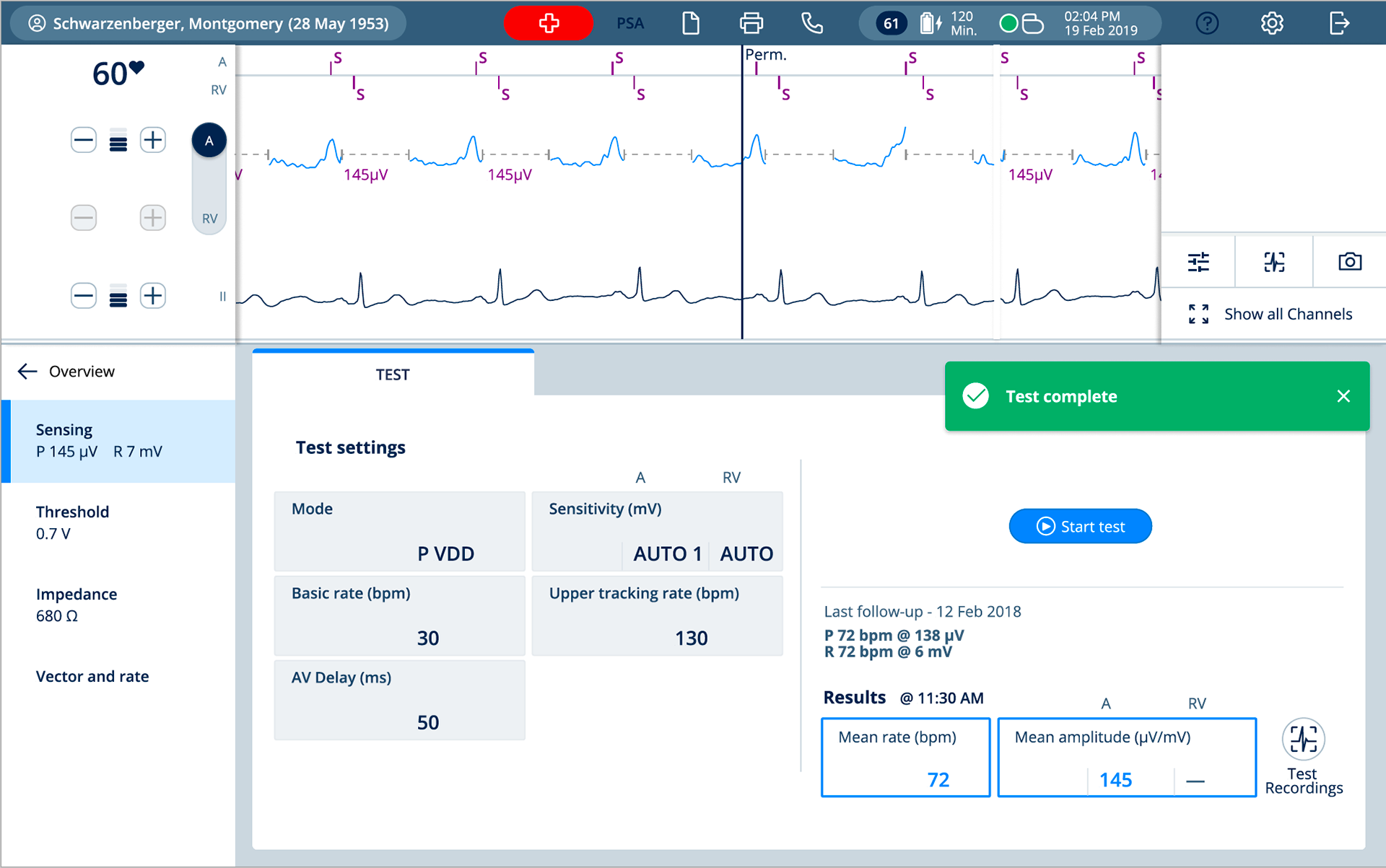

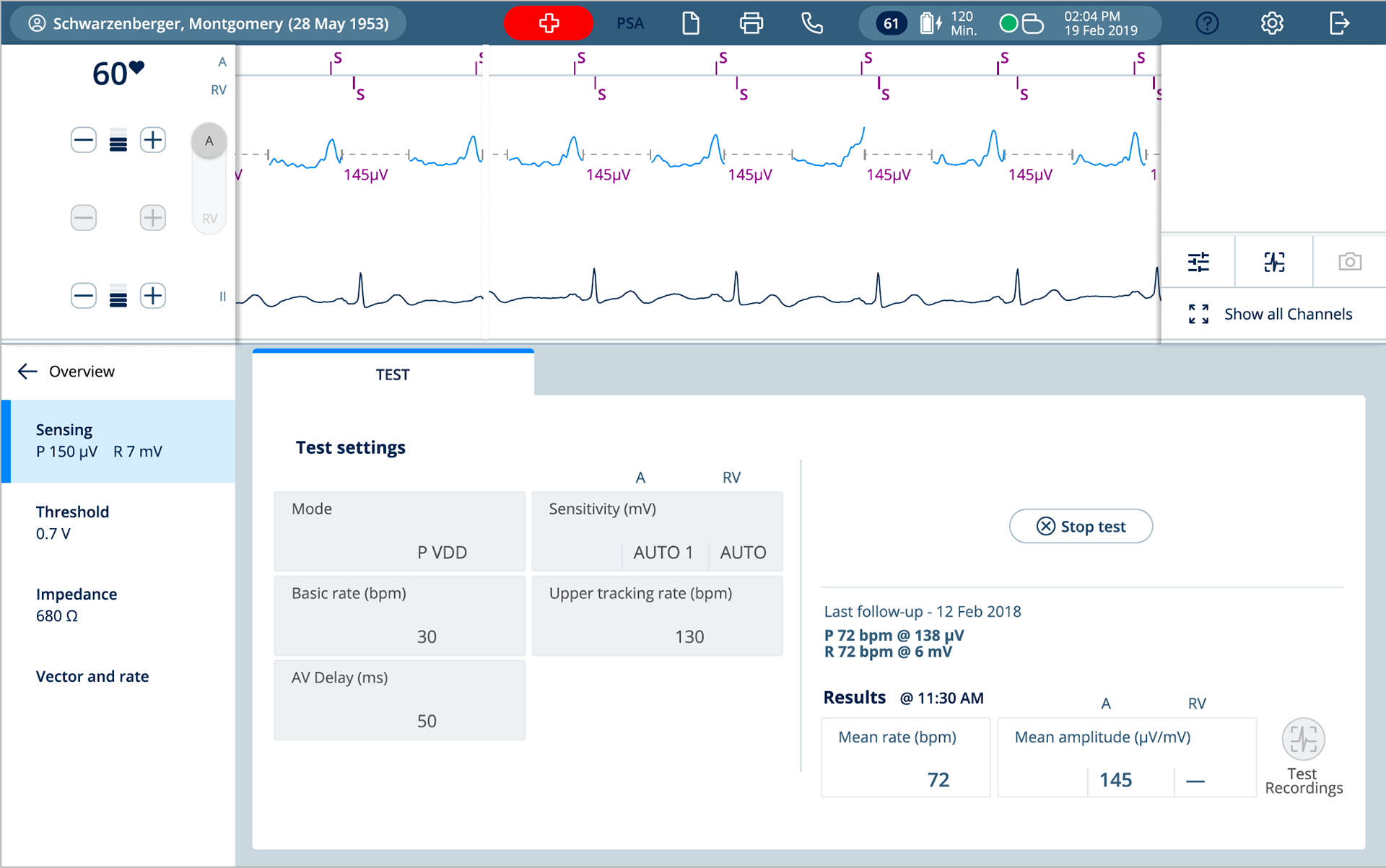

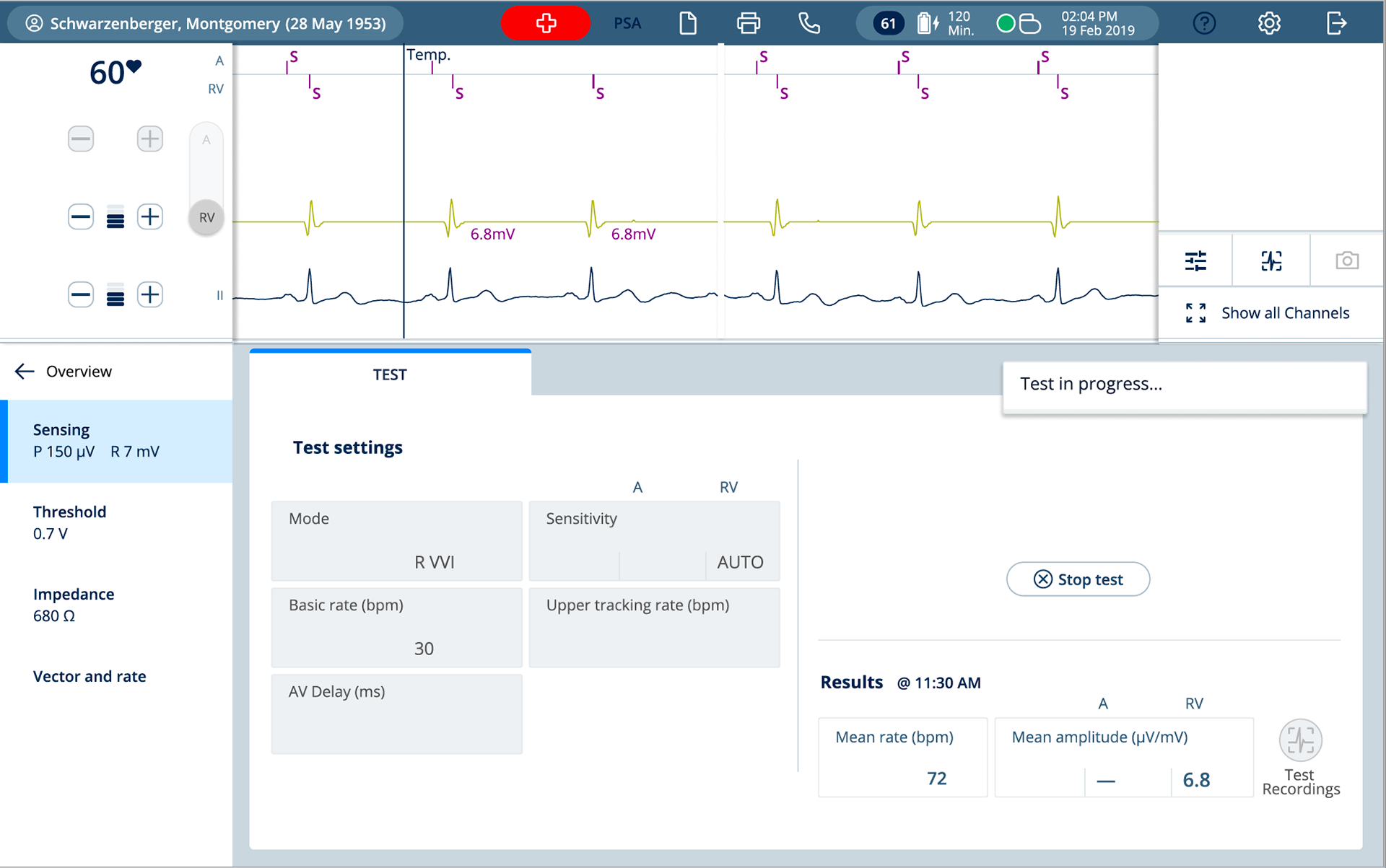

Sensing test atrial

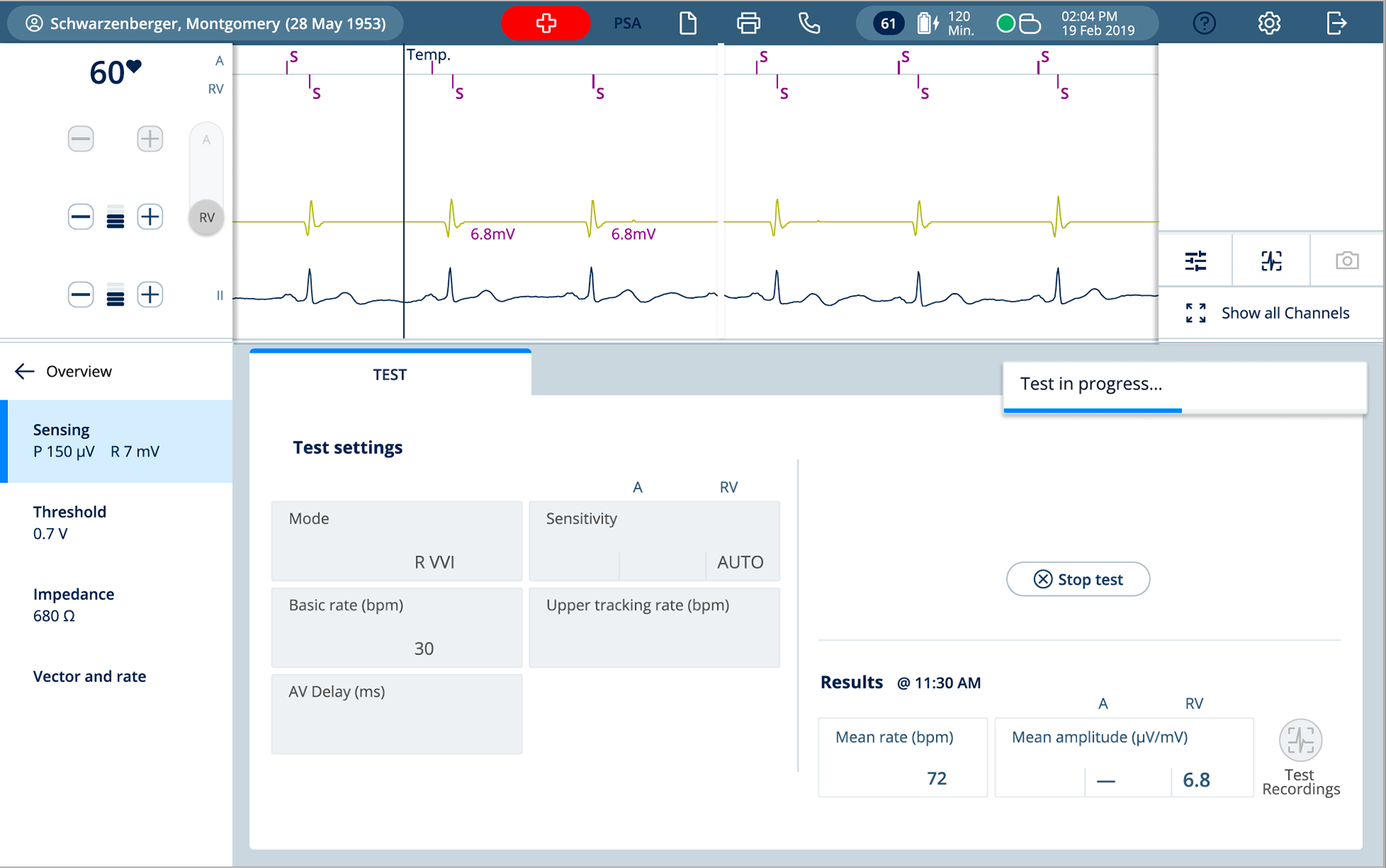

Sensing test ventricle 2
Sensing test ventricle 3
Sensing test ventricle 4
Sensing test ventricle 5
Sensing test ventricle 6
Overview ventricle results

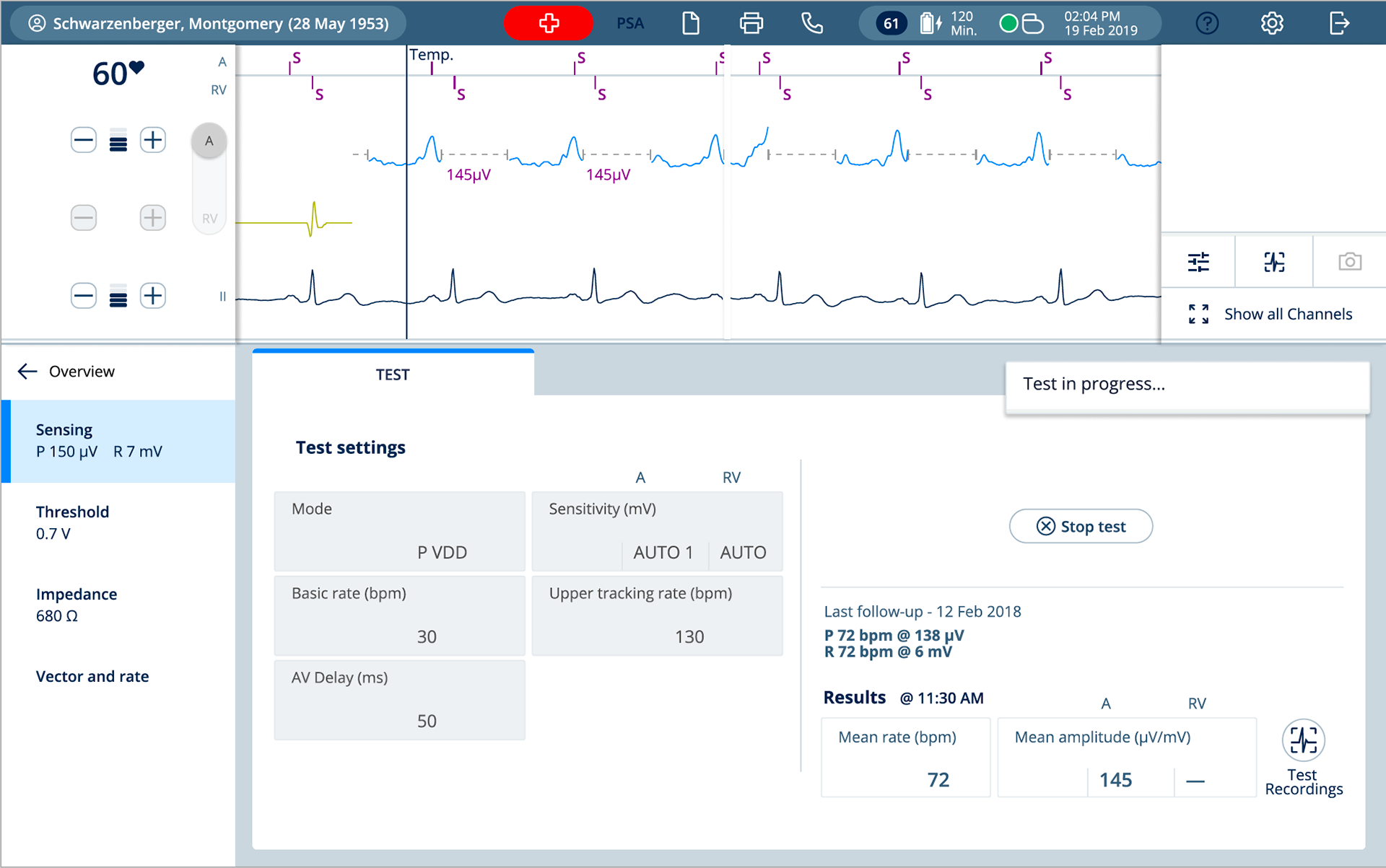

Sensing test atrial IEGM flow

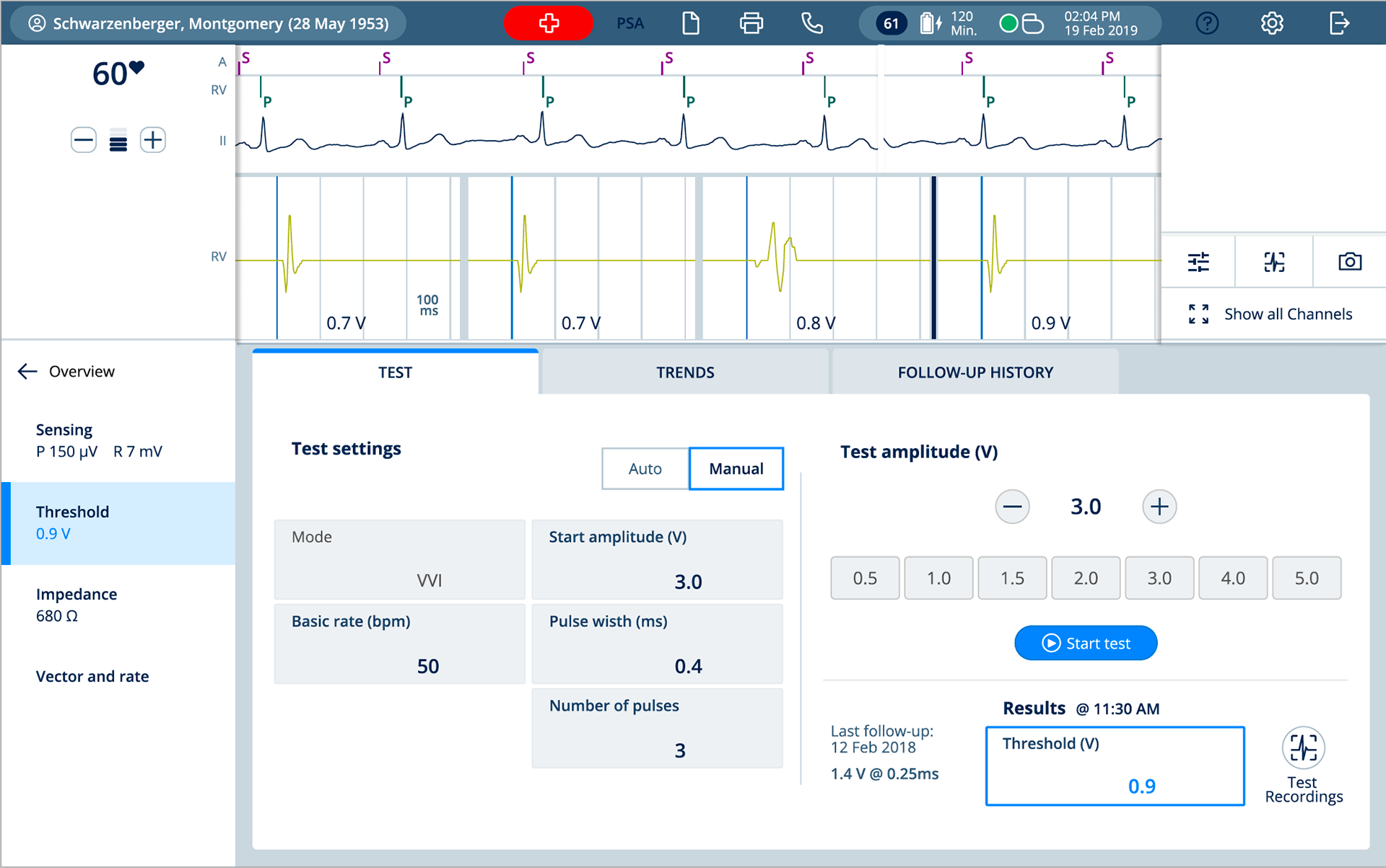

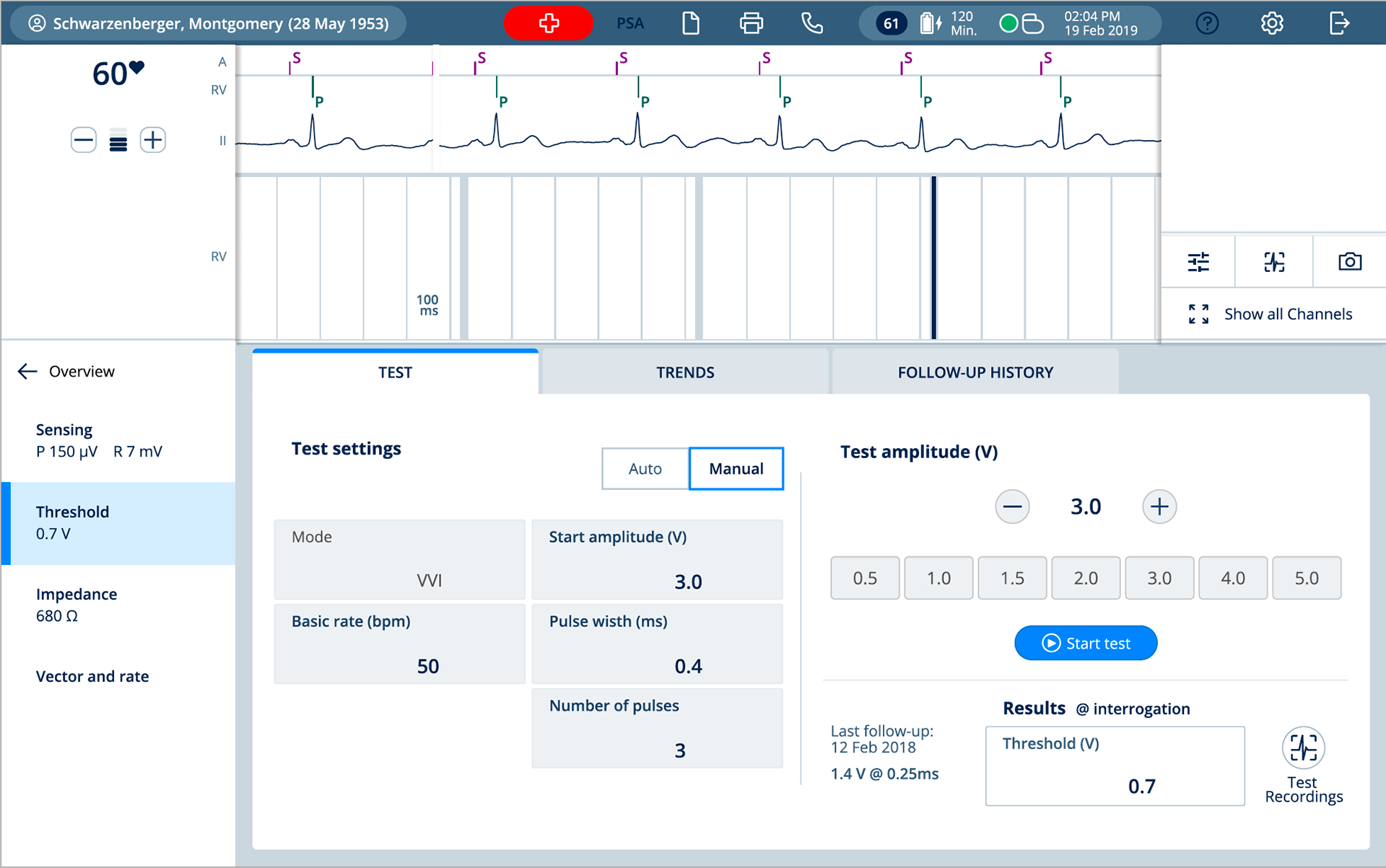

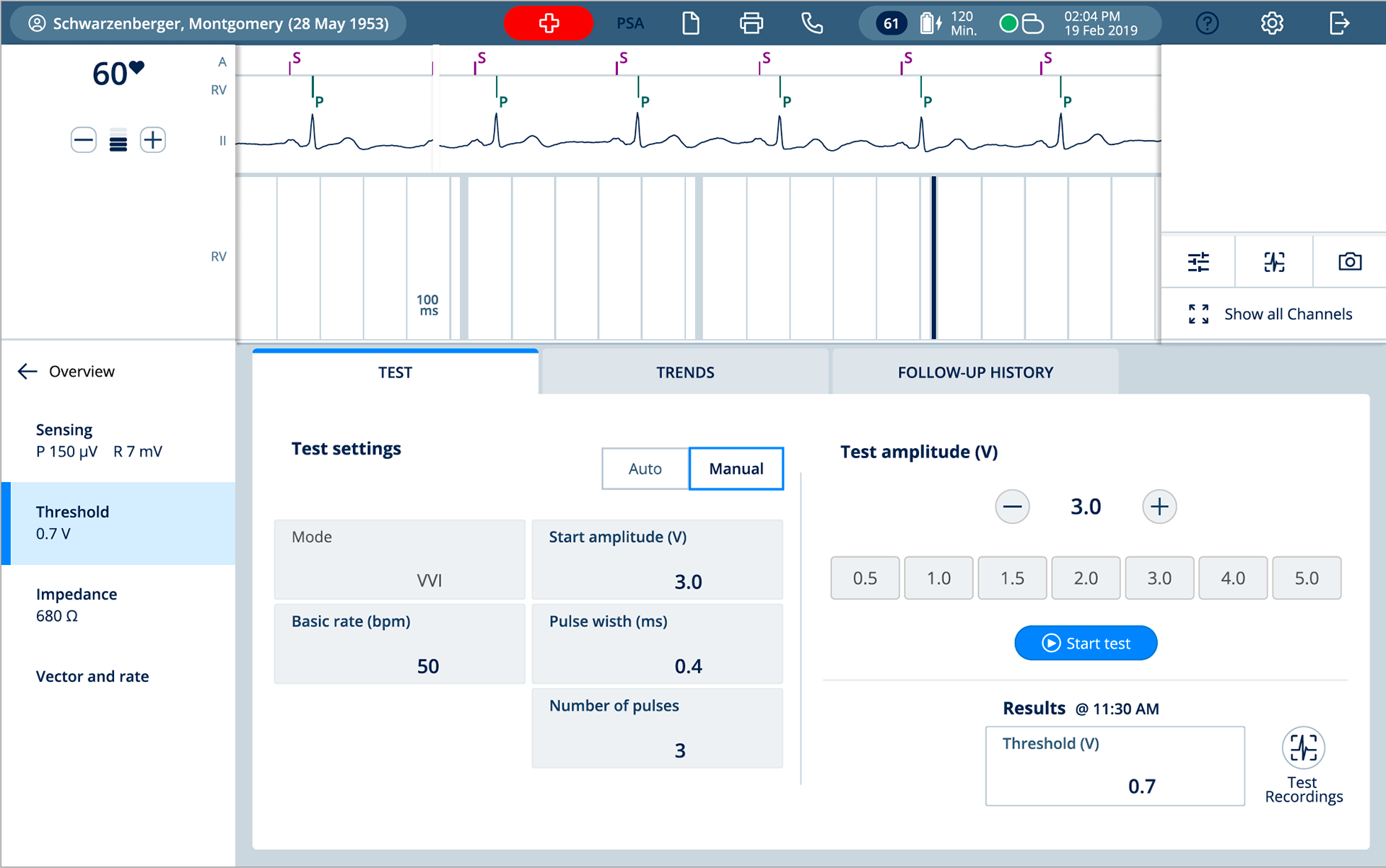

Threshold manual test

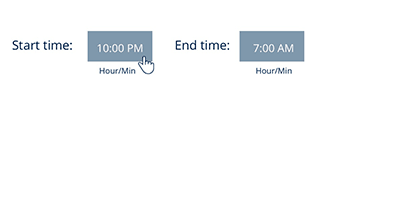

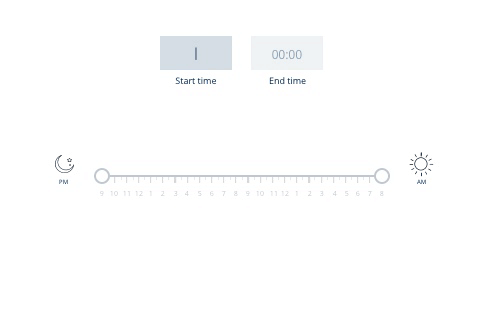

Exploration of clock, dropdown, and slider interval for night time selection

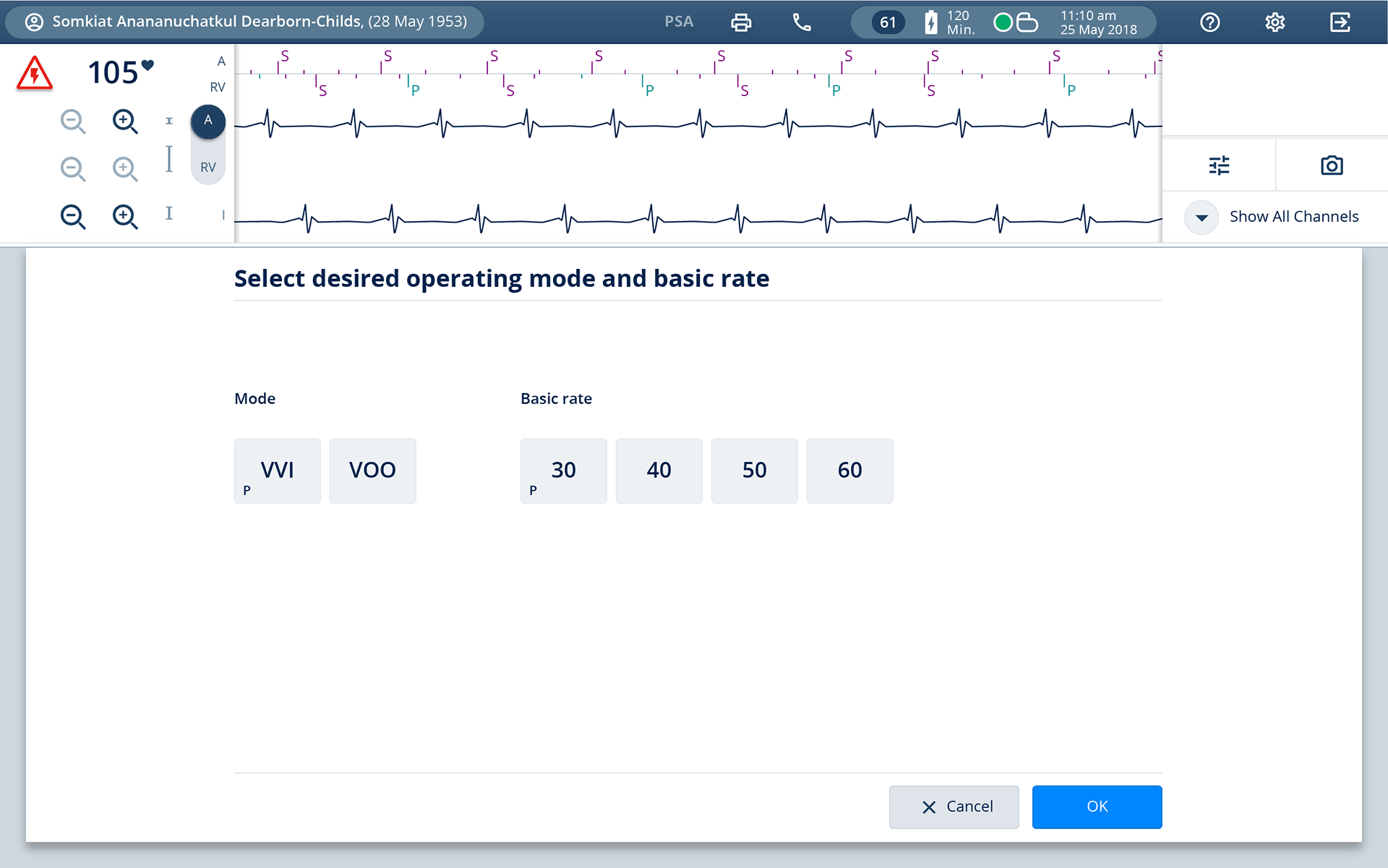

Repeat all tests flow (tap 'Repeat all Tests' button)

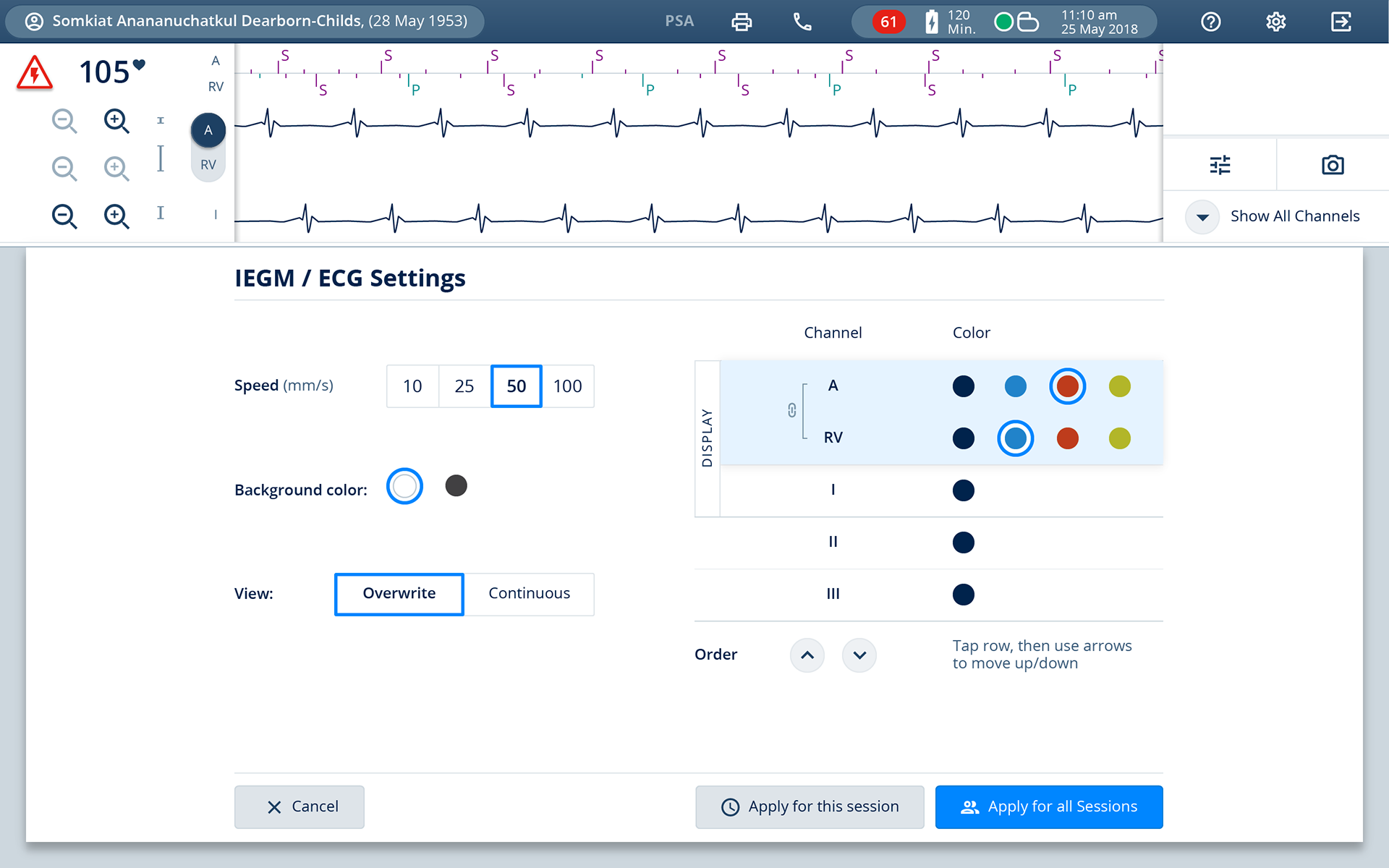

EIGM settings screens

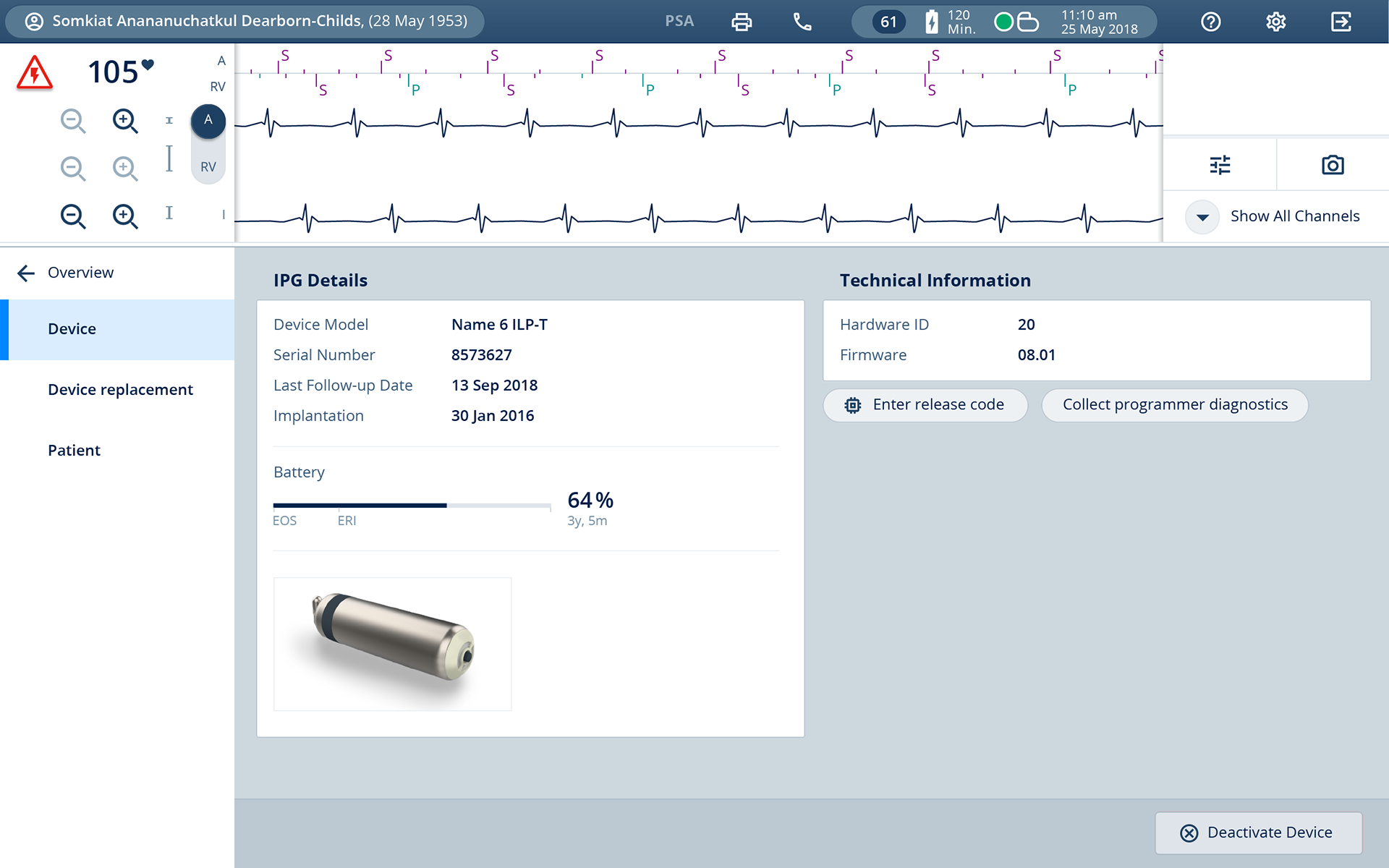

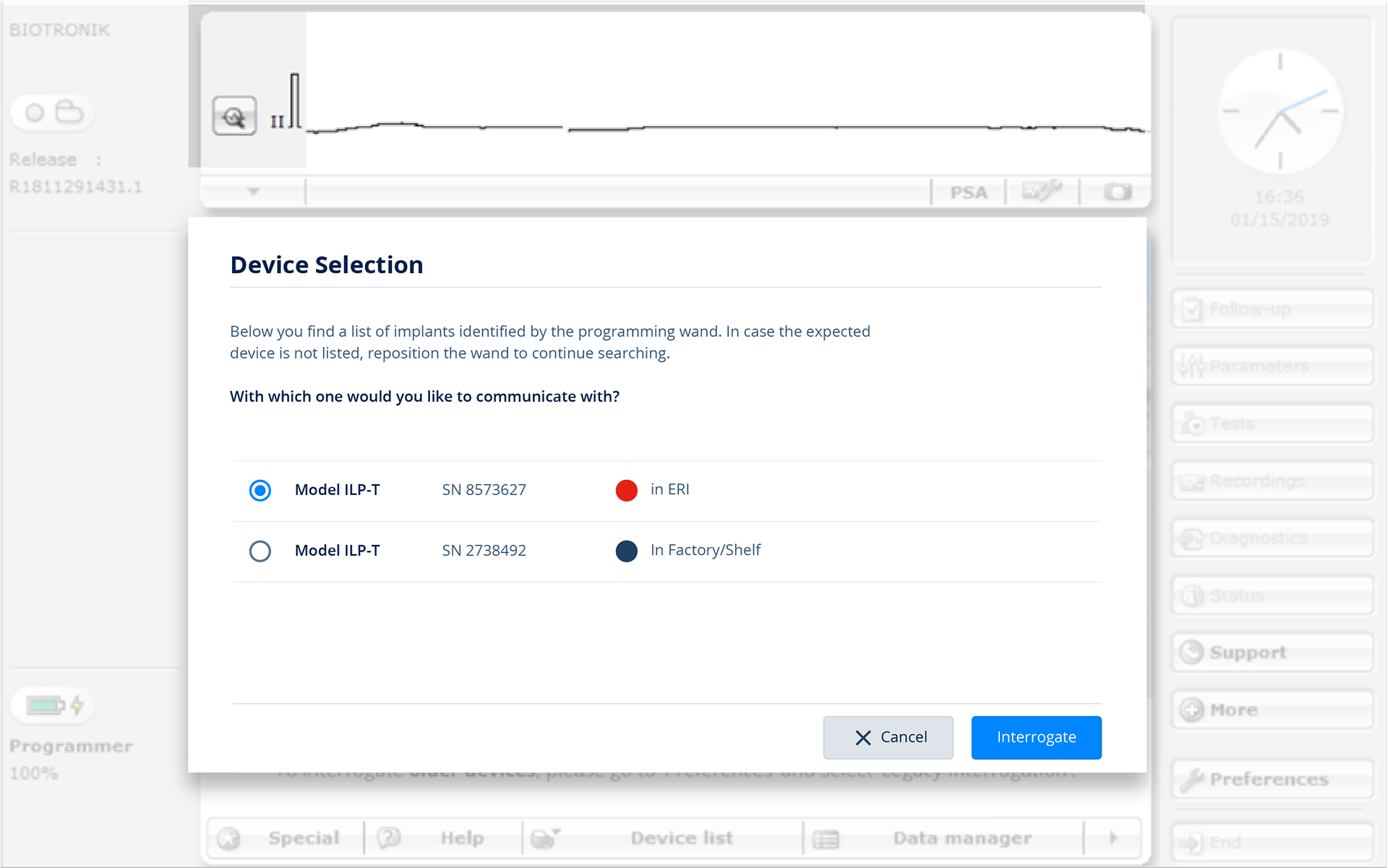

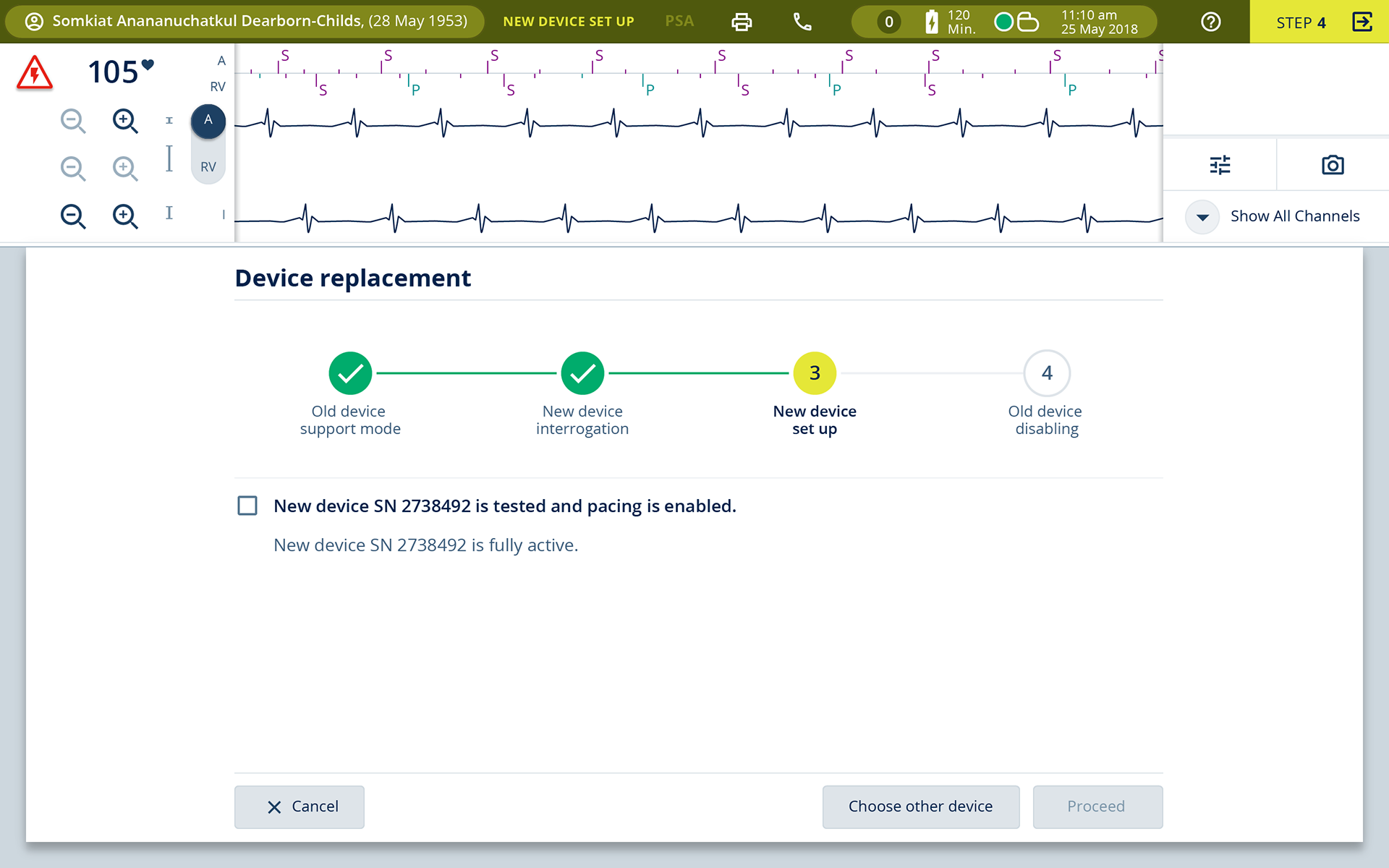

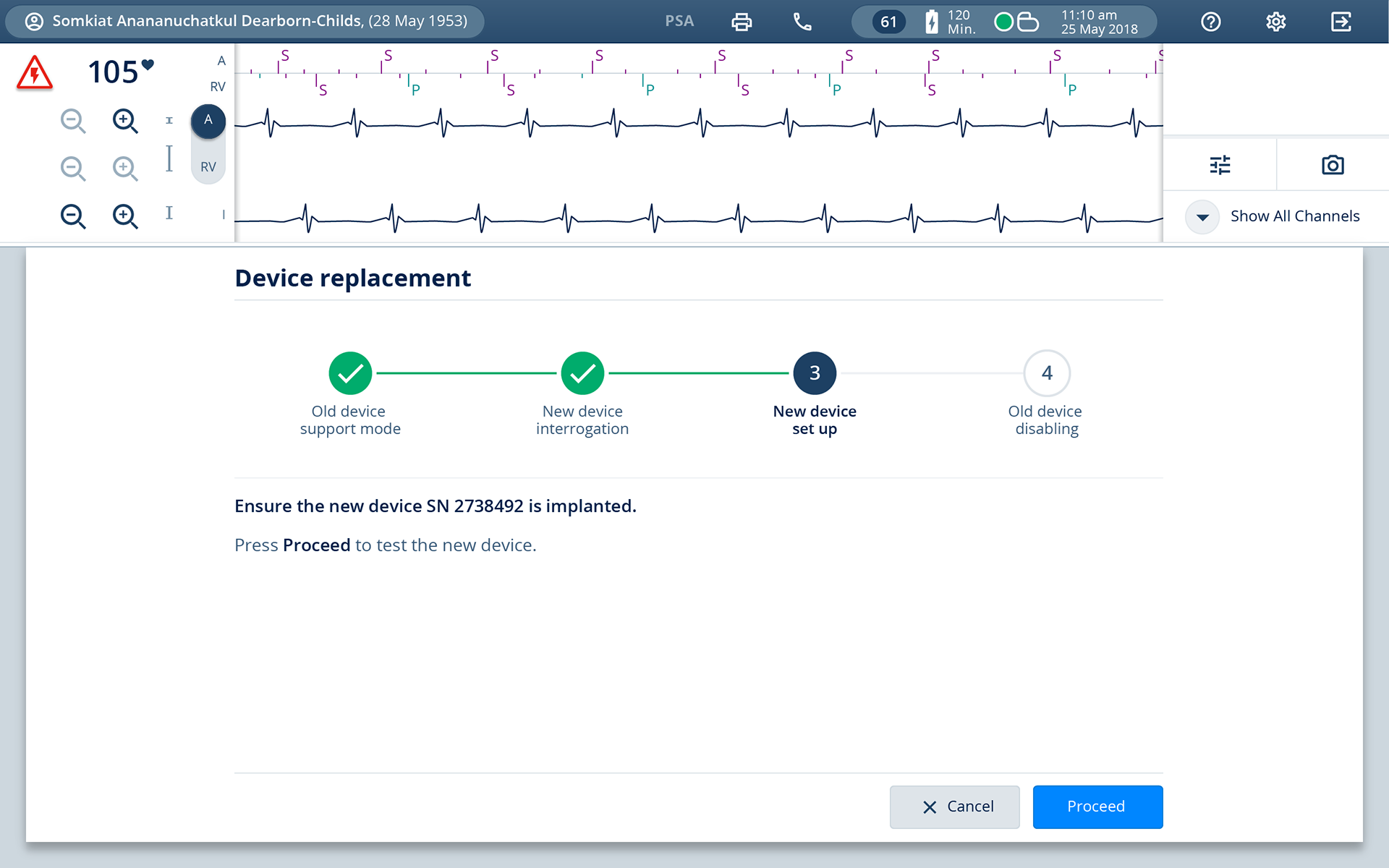

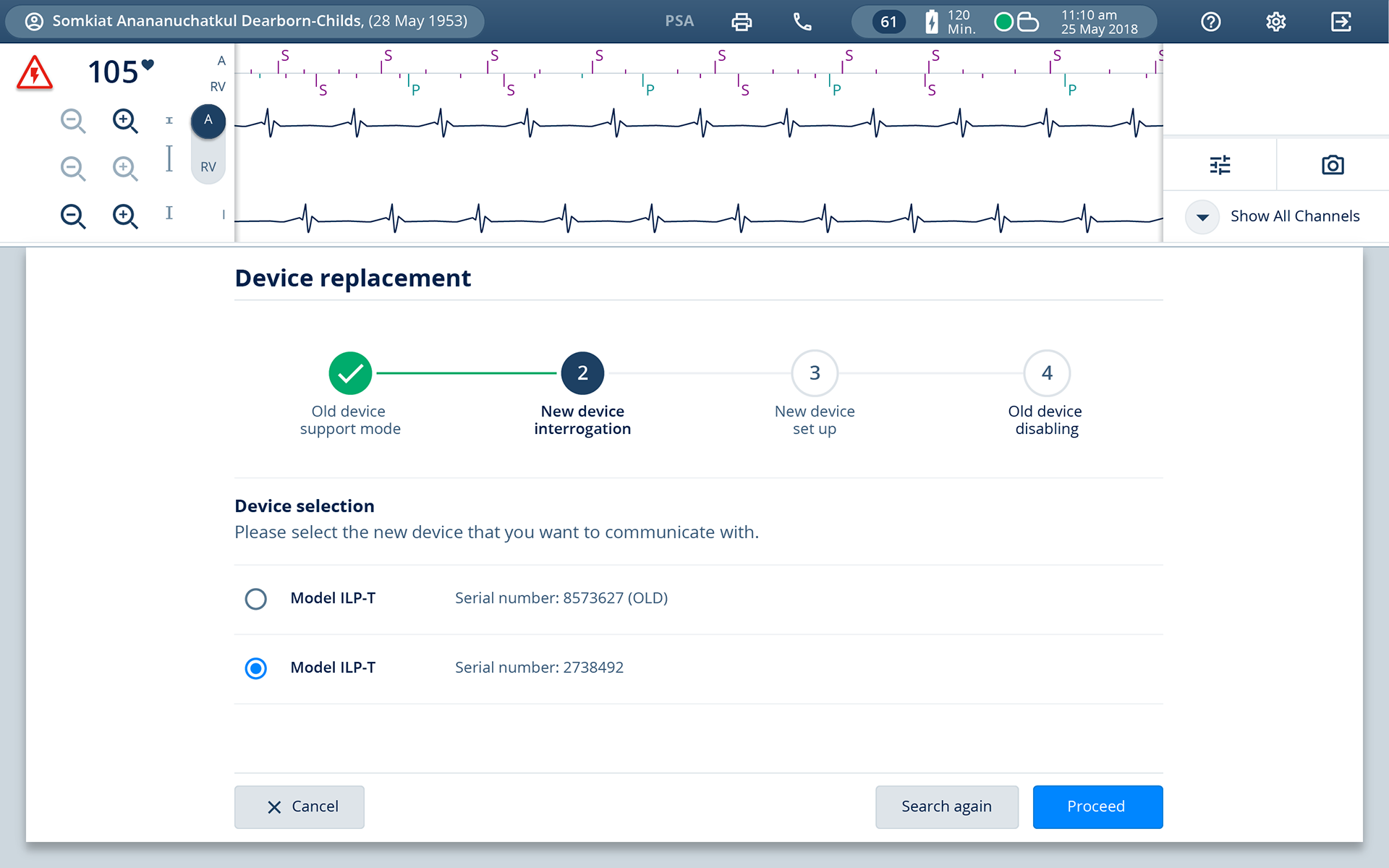

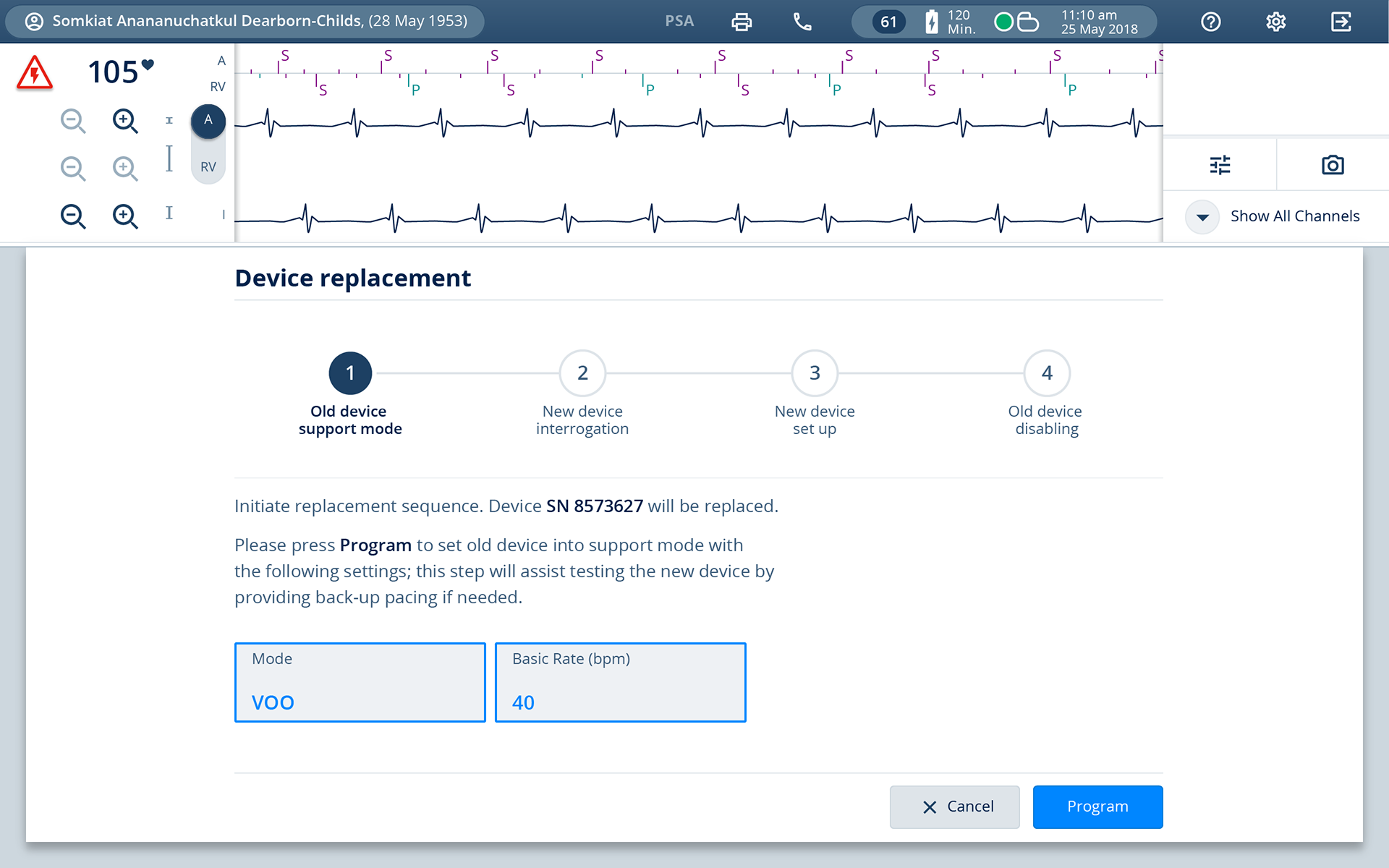

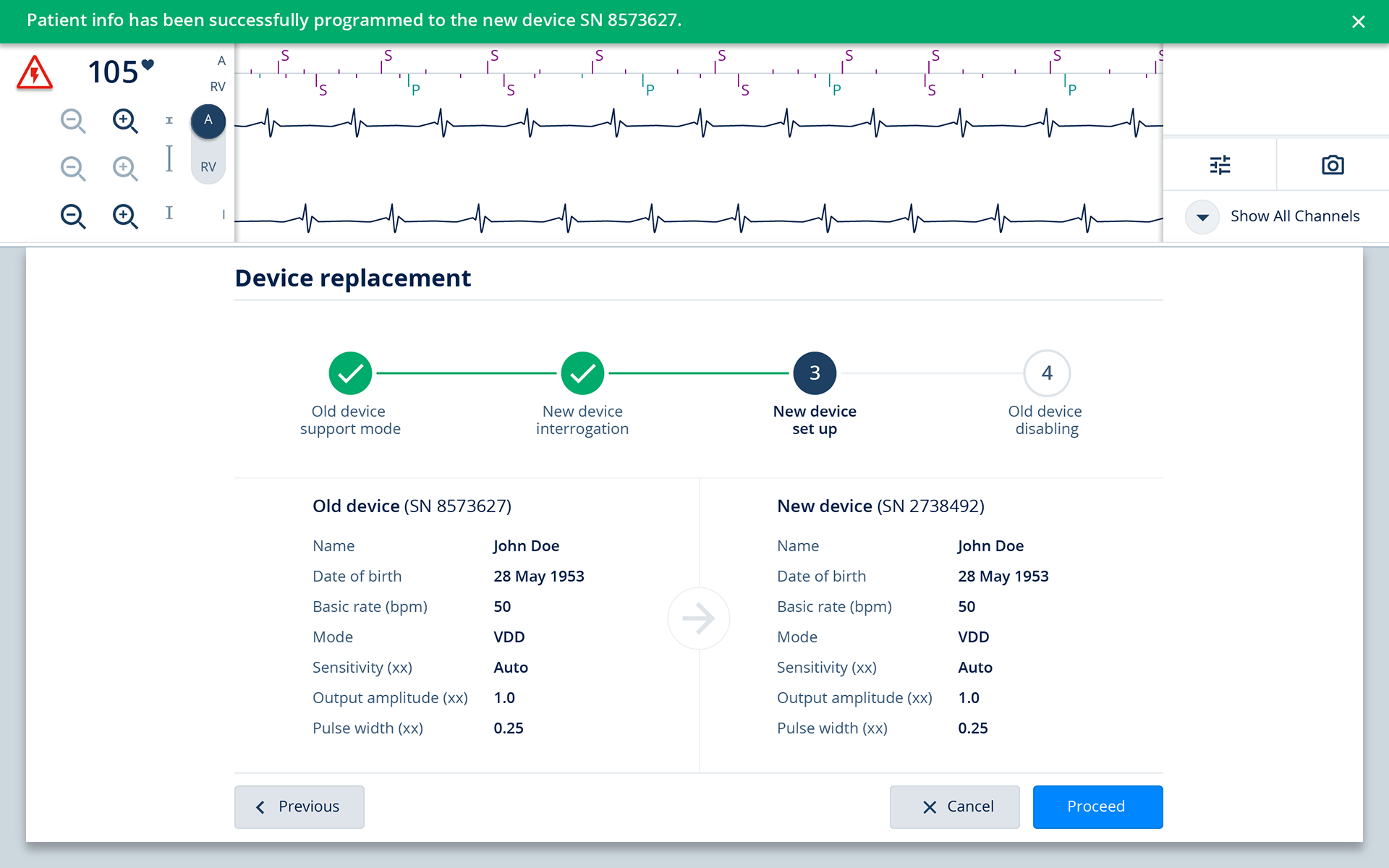

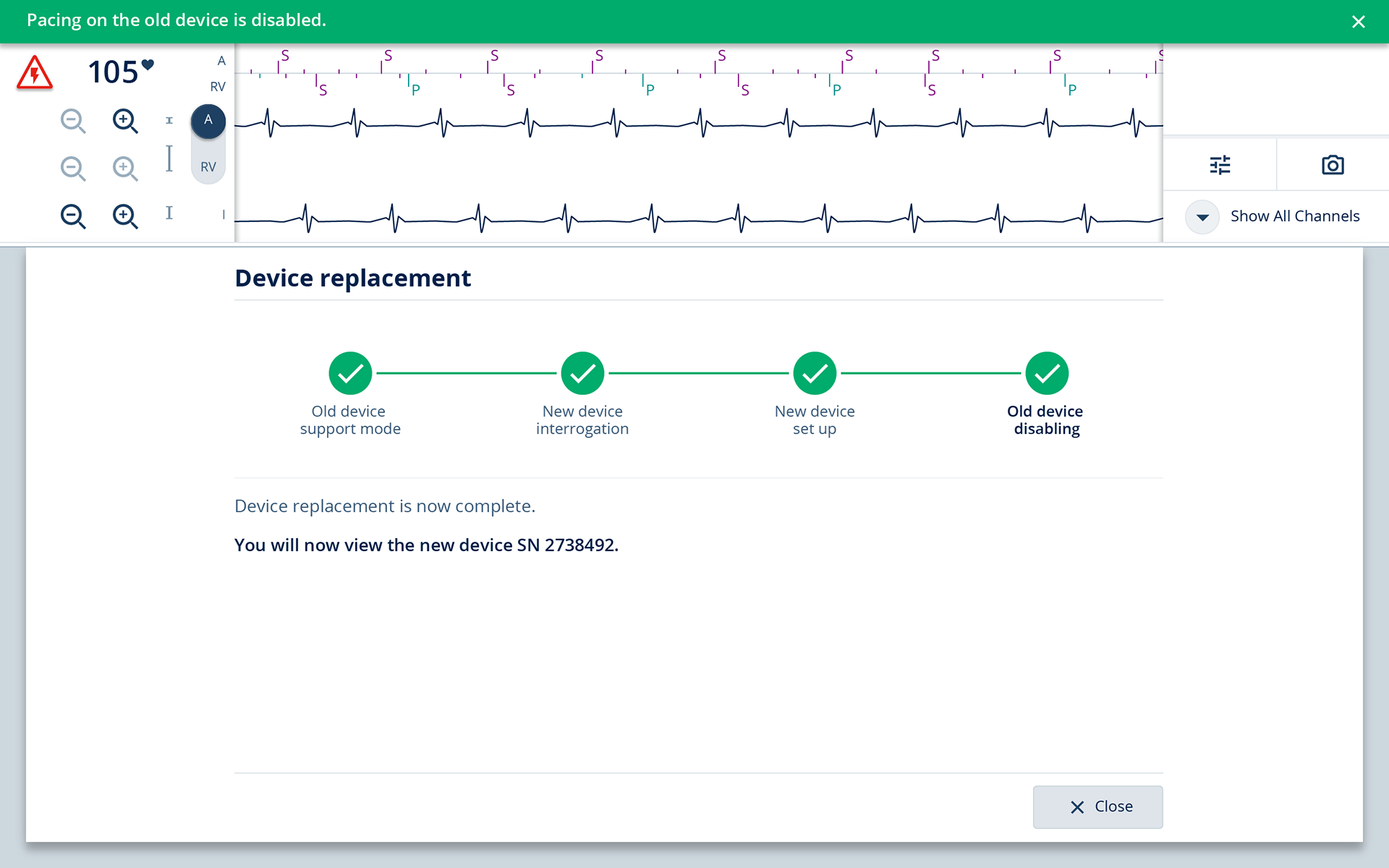

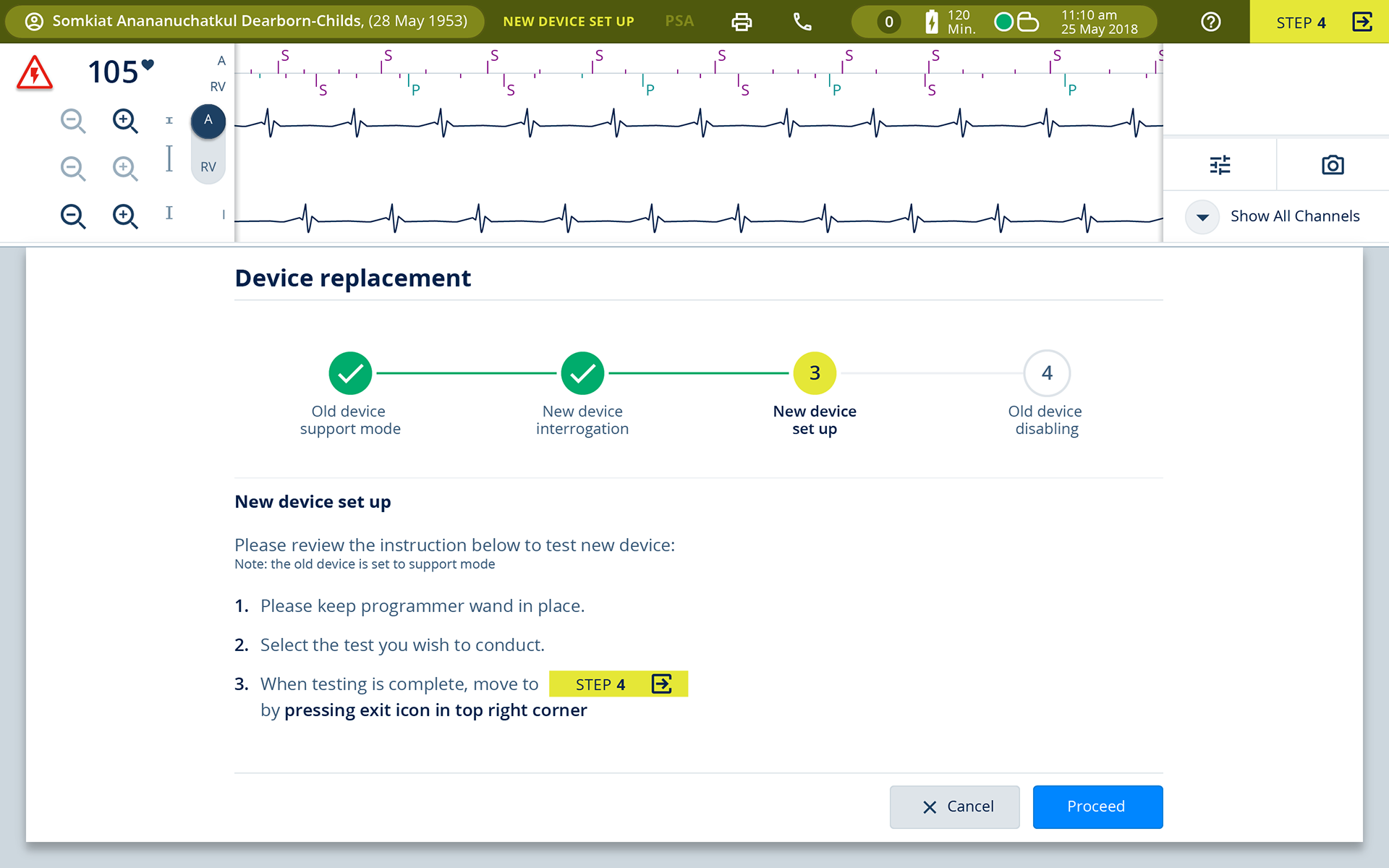

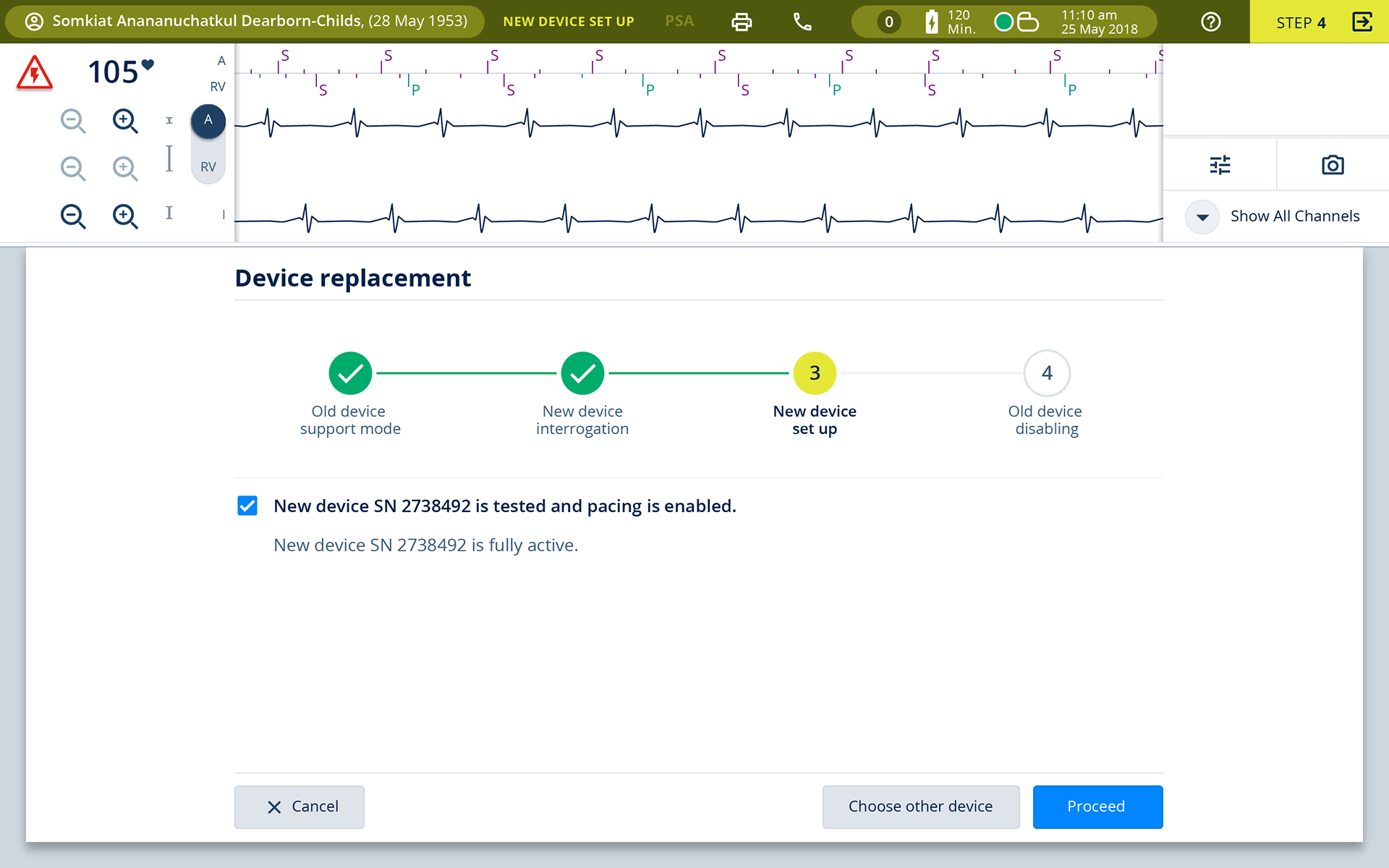

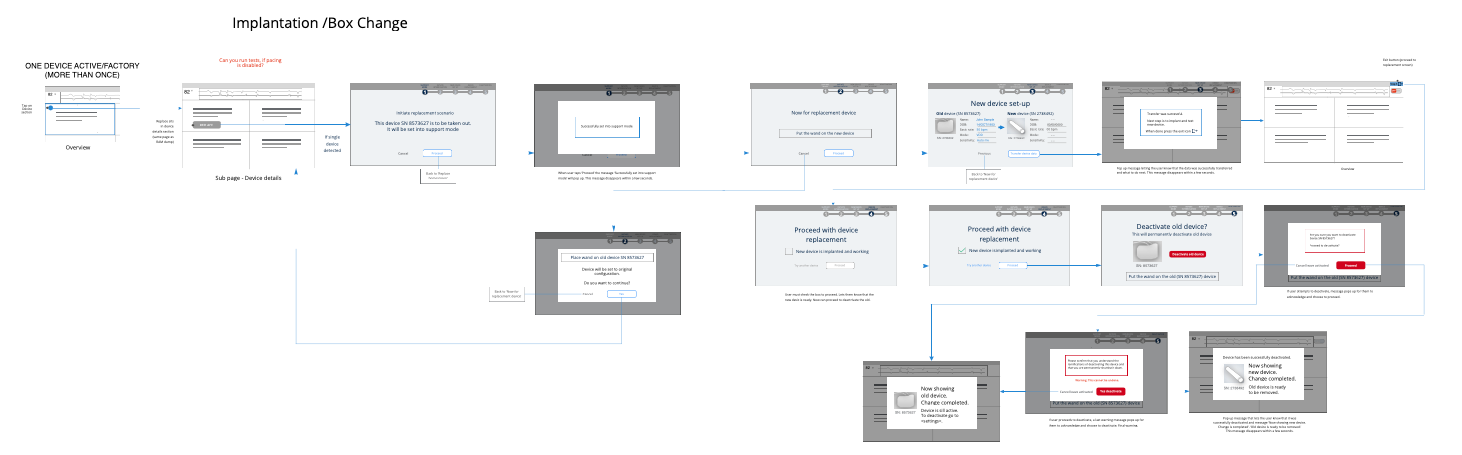

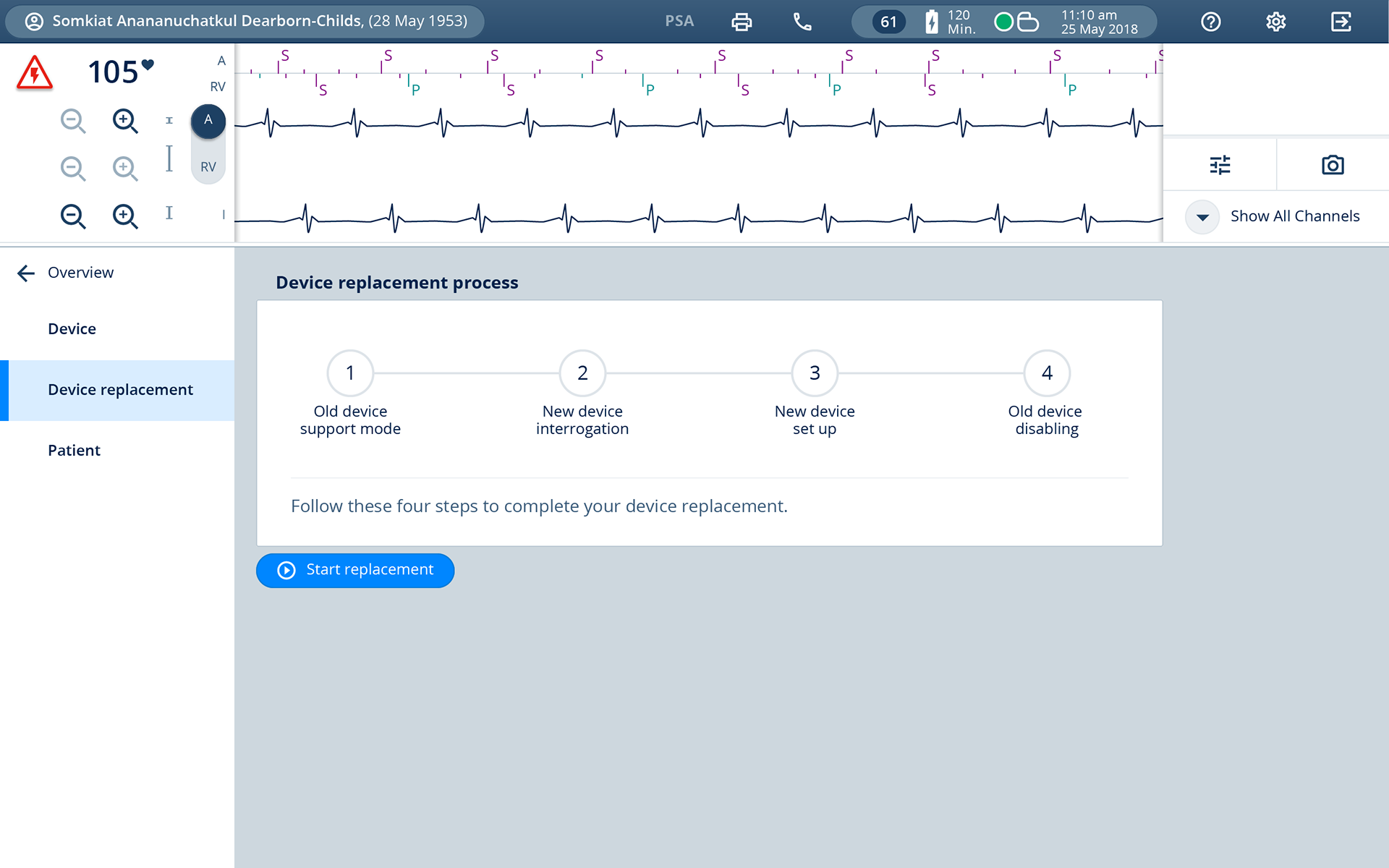

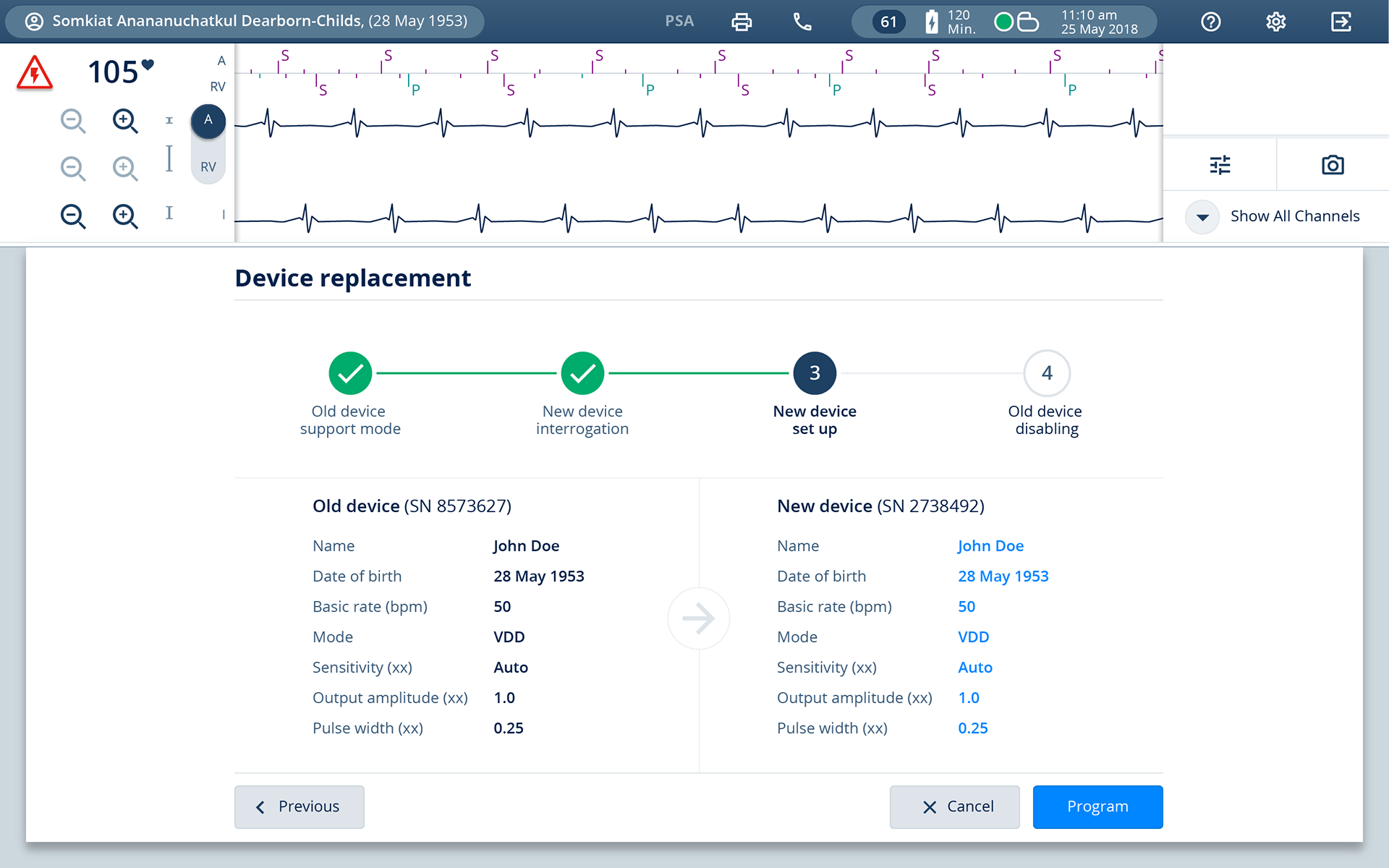

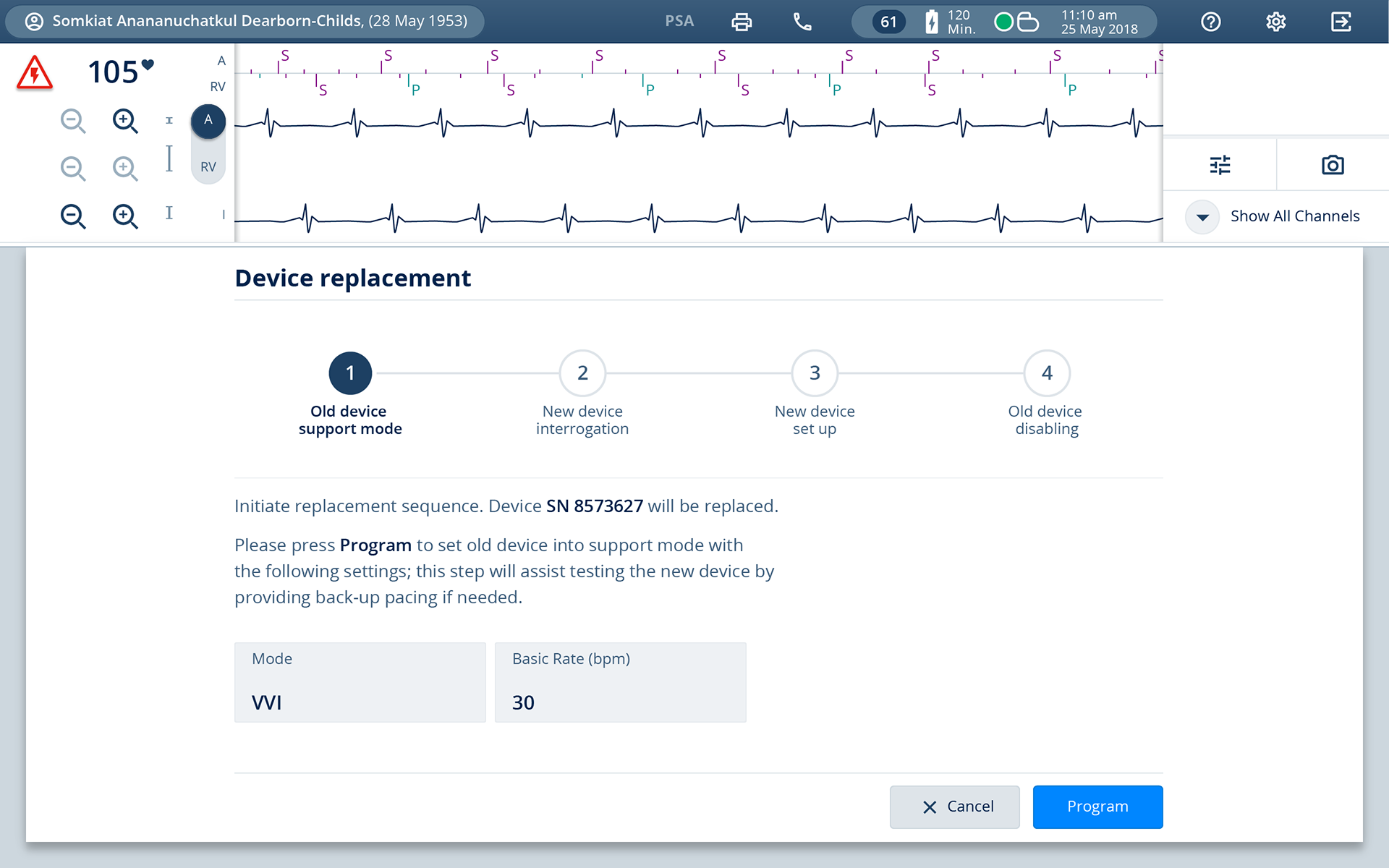

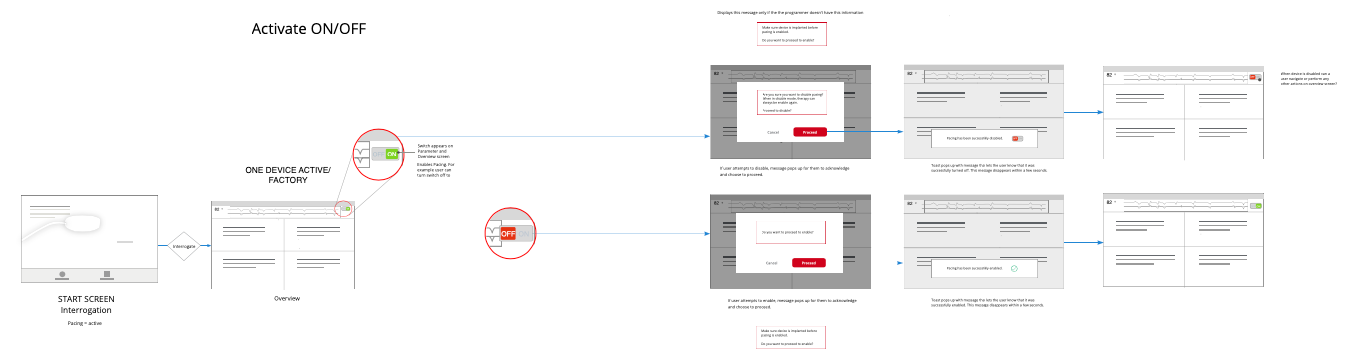

Implantation device replacement wireframes

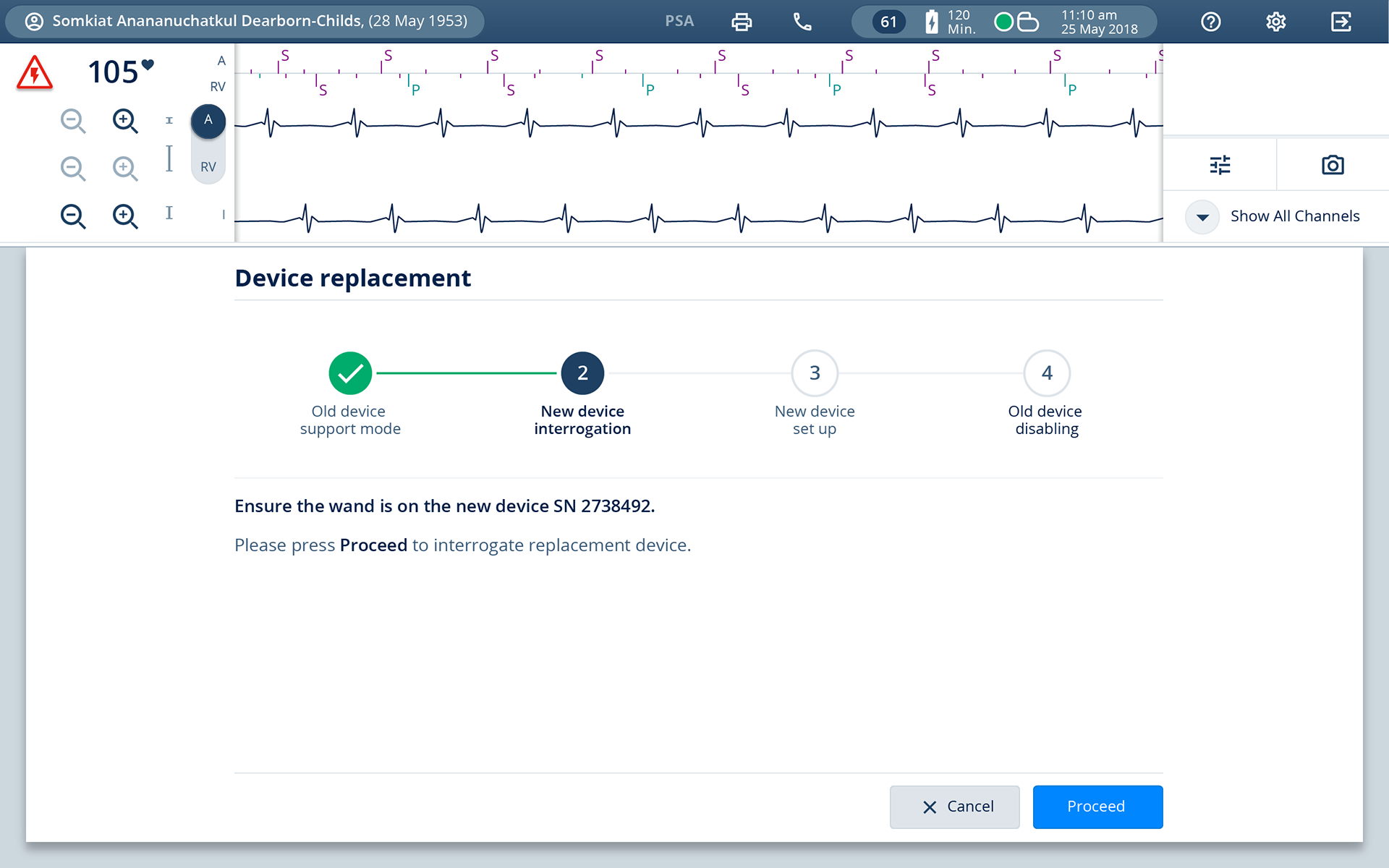

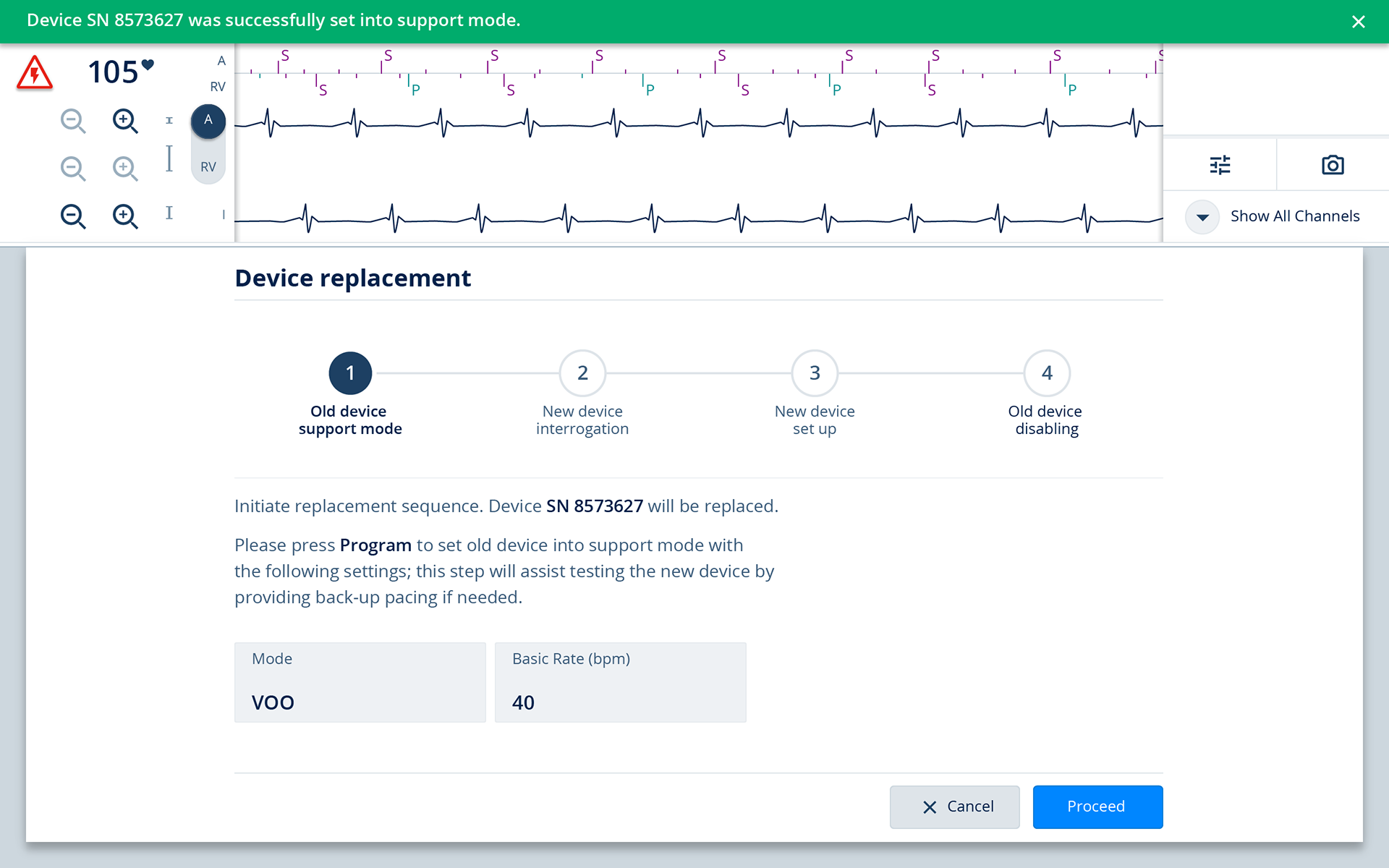

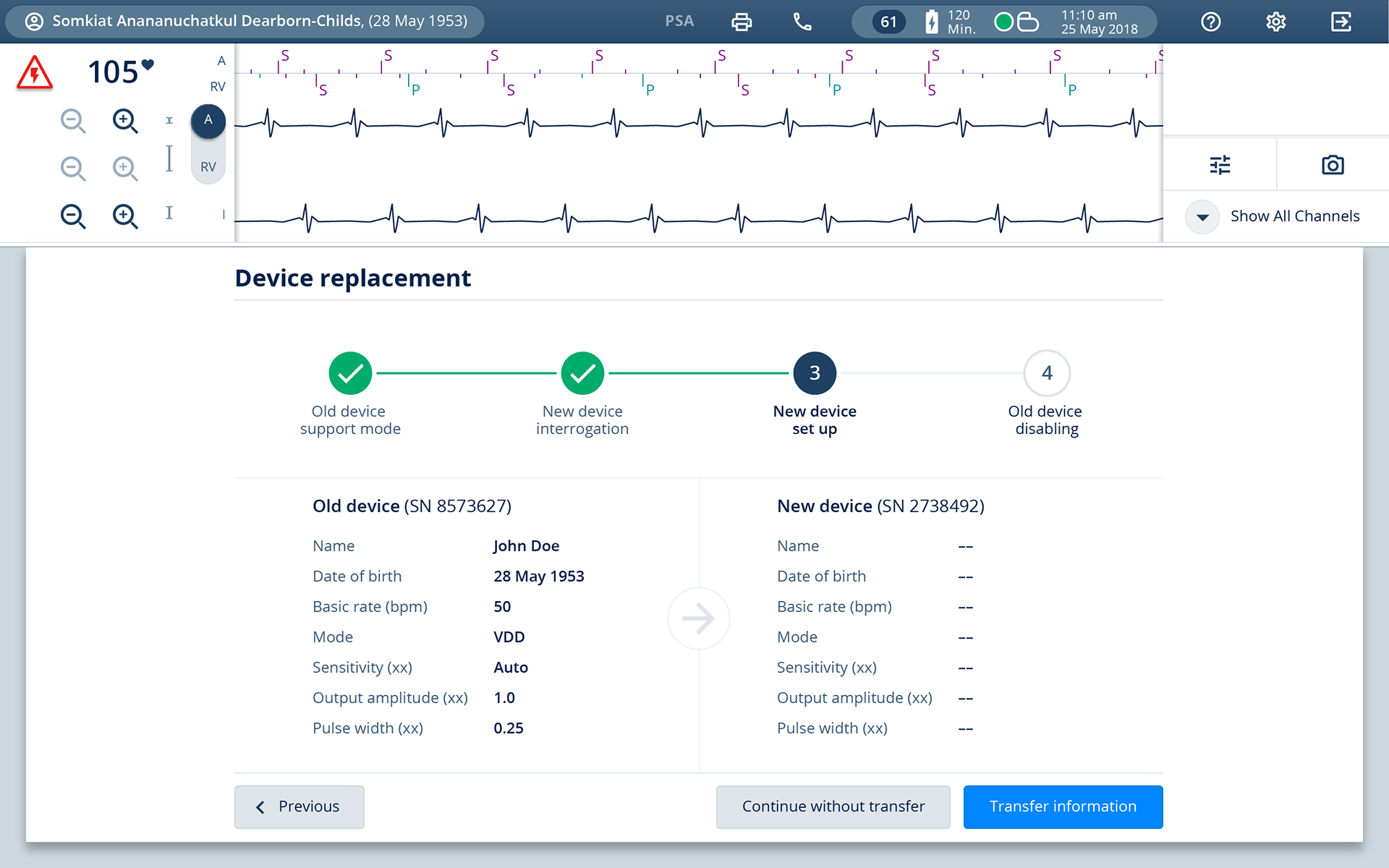

Leadless Device Replacement Scenario Flow
